Rope Plugs
Plug design is key to the positive grip of Electroline’s swageless terminations. Plugs are designed and manufactured using specific materials to maximize the holding power of different types and constructions of rope.
Plugs for the more common wire rope constructions are listed. However, Electroline engineers have developed other configurations for ropes that are not listed. Contact Electroline for help finding the right rope termination.

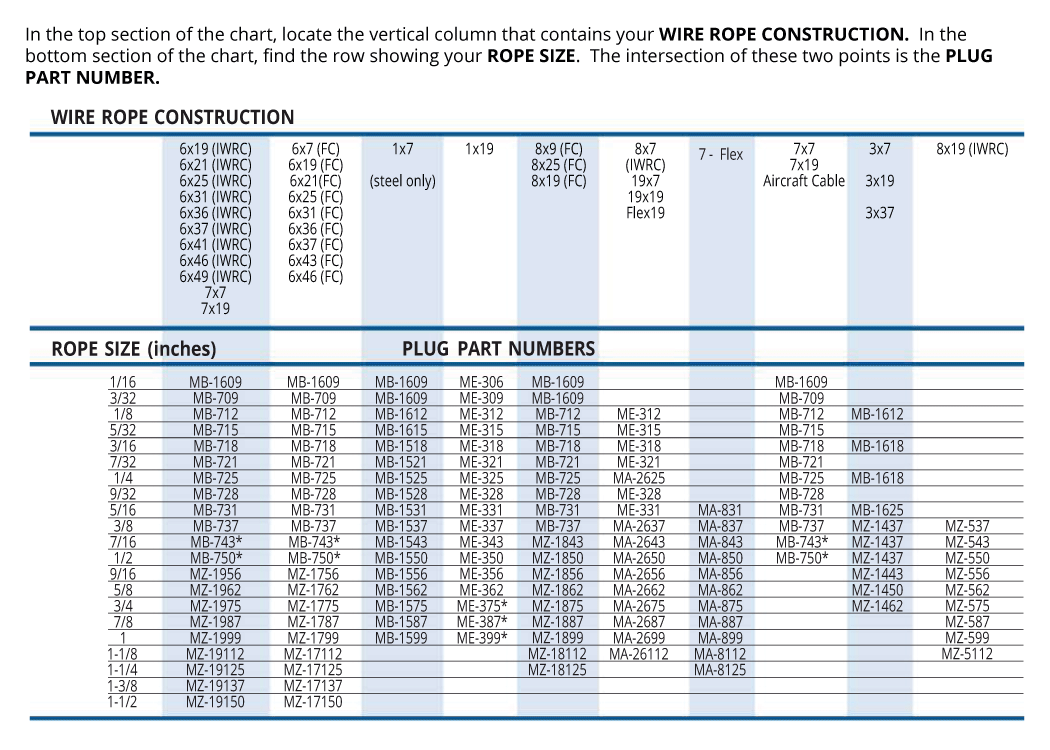

Find a Plug
Rope Size (Inches)
Rope Type
Wire Rope Construction
Synthetic Rope Construction
Wire Rope Plug MB-5137
| Rope Size | 1-3/8 |
|---|---|
| Rope Material | Wire |
| Wire Rope Construction | 8 x 19 (IWRC) |
| Material | Brass |
| Part Number | MB-5137 |
| List Price | Factory Quote: Please contact Electroline. |

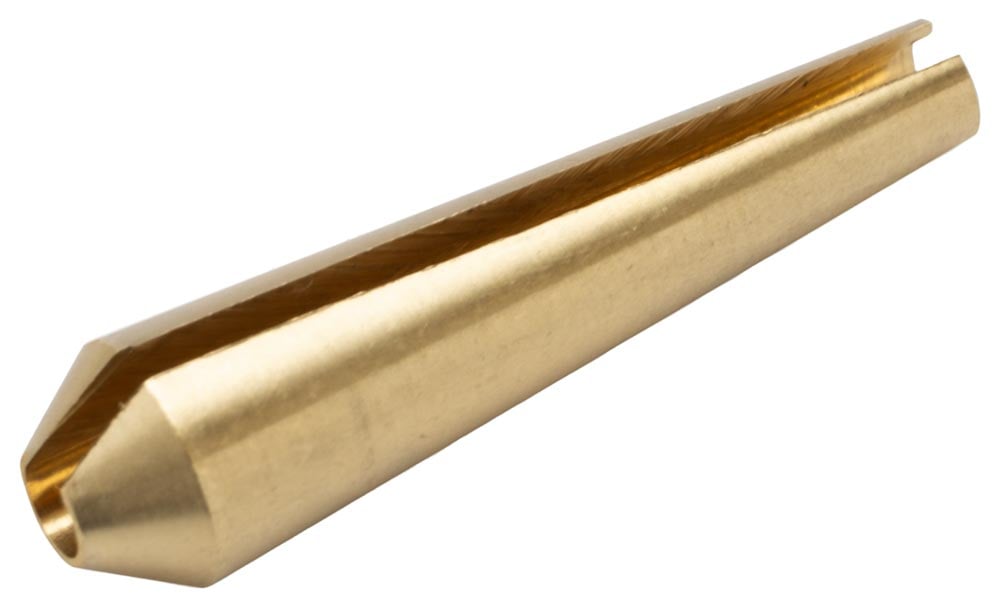

Wire Rope Plug MB-718
| Weight | 0.1 lbs |
|---|---|
| Rope Size | 3/16 |
| Rope Material | Wire |
| Wire Rope Construction | 6 x 19 (FC), 6 x 19 (IWRC), 6 x 21 (FC), 6 x 21 (IWRC), 6 x 25 (FC), 6 x 25 (IWRC), 6 x 31 (FC), 6 x 31 (IWRC), 6 x 36 (FC), 6 x 36 (IWRC), 6 x 37 (FC), 6 x 37 (IWRC), 6 x 41 (IWRC), 6 x 43 (FC), 6 x 46 (FC), 6 x 46 (IWRC), 6 x 49 (IWRC), 6 x 7 (FC), 7 x 19, 7 x 19 Aircraft Cable, 7 x 7, 7 x 7 Aircraft Cable, 8 x 19 (FC), 8 x 25 (FC), 8 x 9 (FC) |
| Material | Brass |
| Part Number | MB-718 |
| List Price | $10.36 |

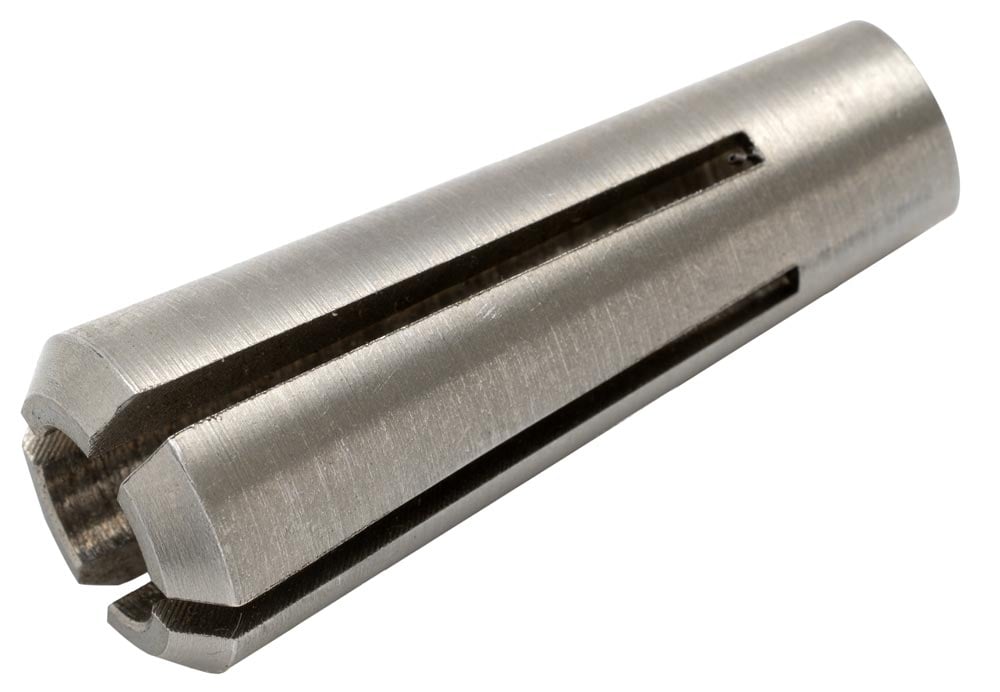

Wire Rope Plug ME-331
| Weight | 0.1 lbs |
|---|---|
| Rope Size | 5/16 |
| Rope Material | Wire |
| Wire Rope Construction | 1 x 19, 18 x 7 (IWRC), 19 x 19, 19 x 7, Flex x 19 |
| Material | Stainless Steel |
| Part Number | ME-331 |
| List Price | $24.14 |

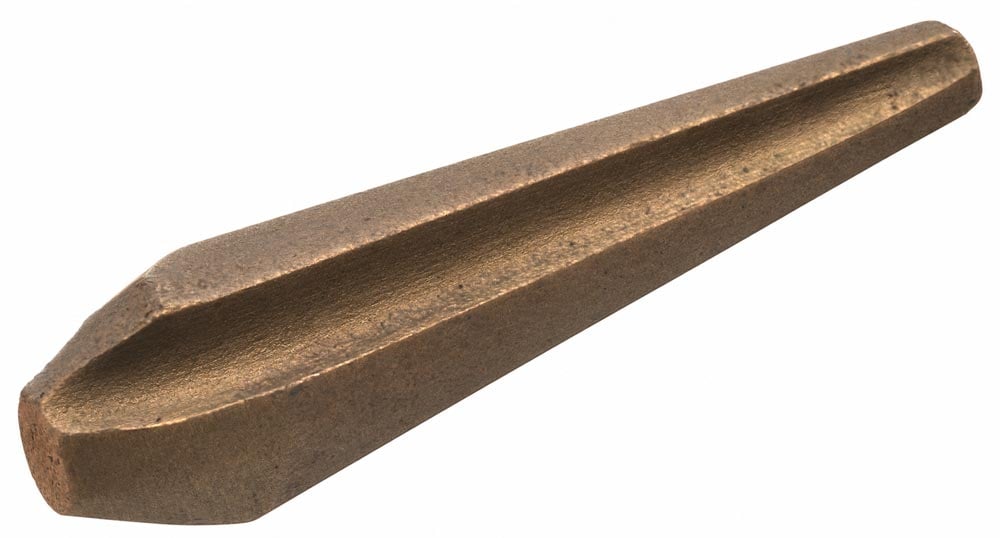

Wire Rope Plug MZ-1462
| Weight | 0.2 lbs |
|---|---|
| Rope Size | 3/4 |
| Rope Material | Wire |
| Wire Rope Construction | 3 x 19, 3 x 37, 3 x 7 |
| Material | Bronze |
| Part Number | MZ-1462 |
| List Price | $30.00 |

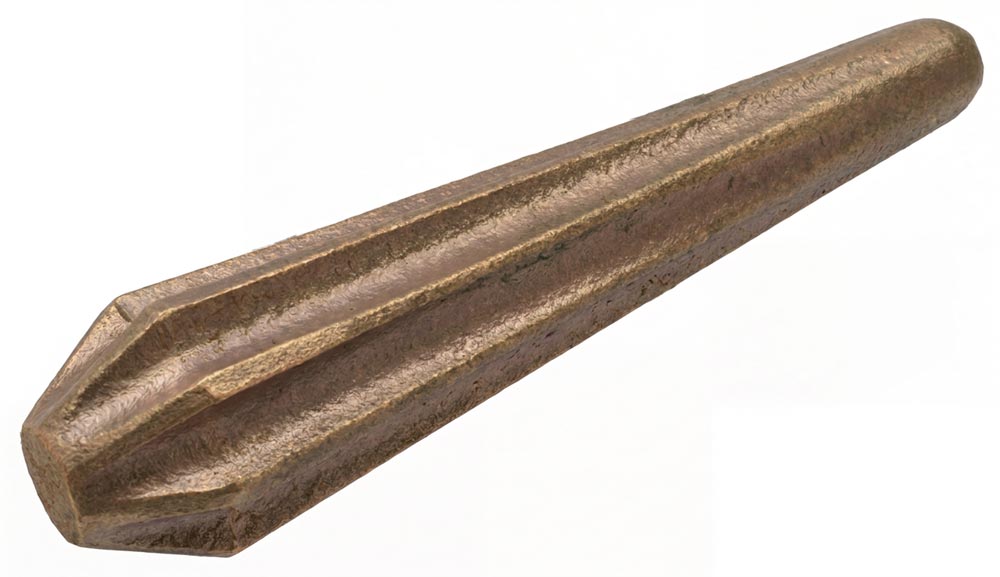

Wire Rope Plug MZ-1875
| Weight | 0.4 lbs |
|---|---|
| Rope Size | 3/4 |
| Rope Material | Wire |
| Wire Rope Construction | 8 x 19 (FC), 8 x 25 (FC), 8 x 9 (FC) |
| Material | Bronze |
| Part Number | MZ-1875 |
| List Price | $33.46 |
