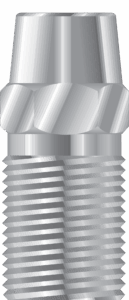

Wire Rope Sleeves
Select from the 2 variables to find a matching product. Or, use the table below to sort all available options.
Available Variations
This table is updated based on the options selected above. You may also select the row matching the desired specifications.

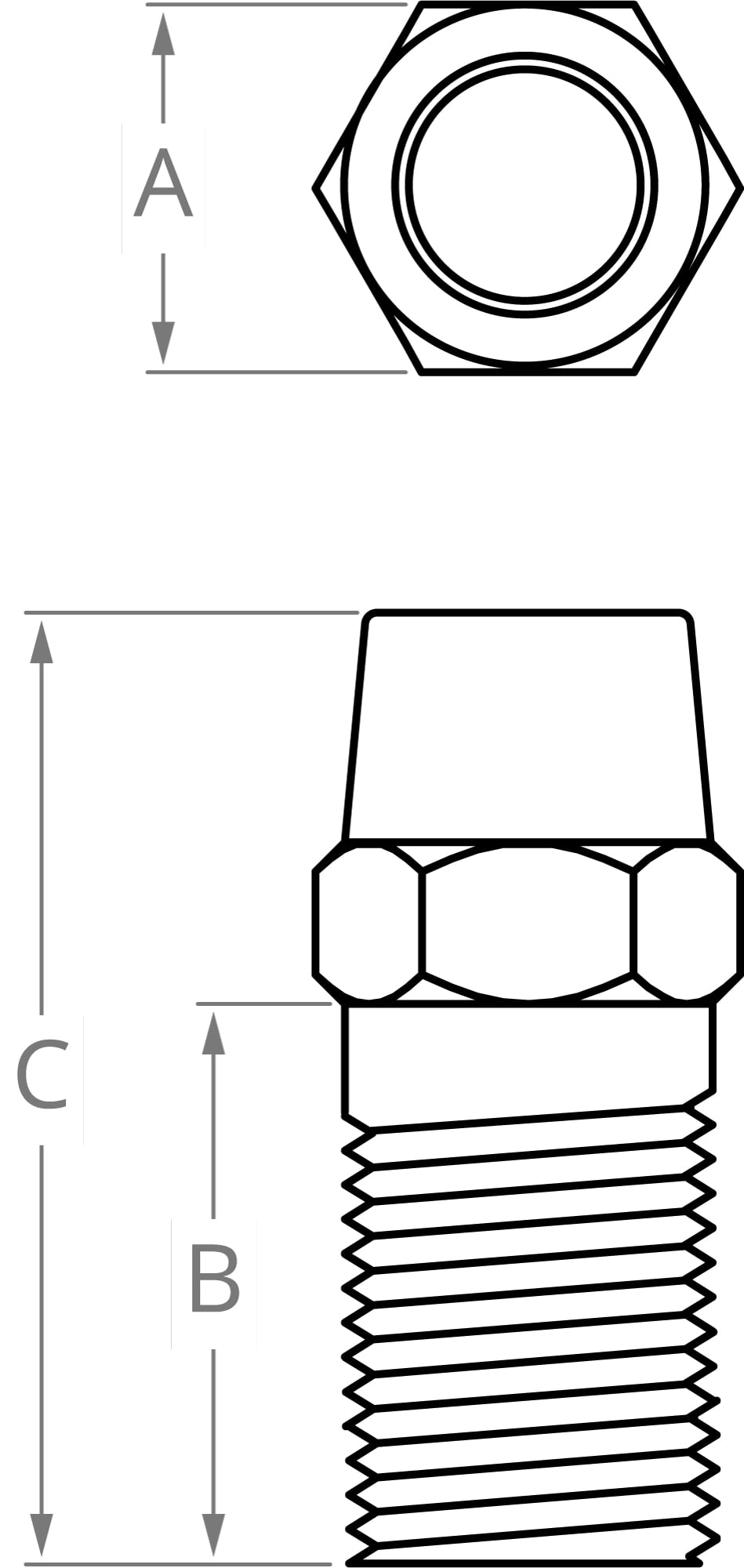

| Product Id | Rope Size | Material | Dimensions | |||
|---|---|---|---|---|---|---|
| A | B | C | ||||

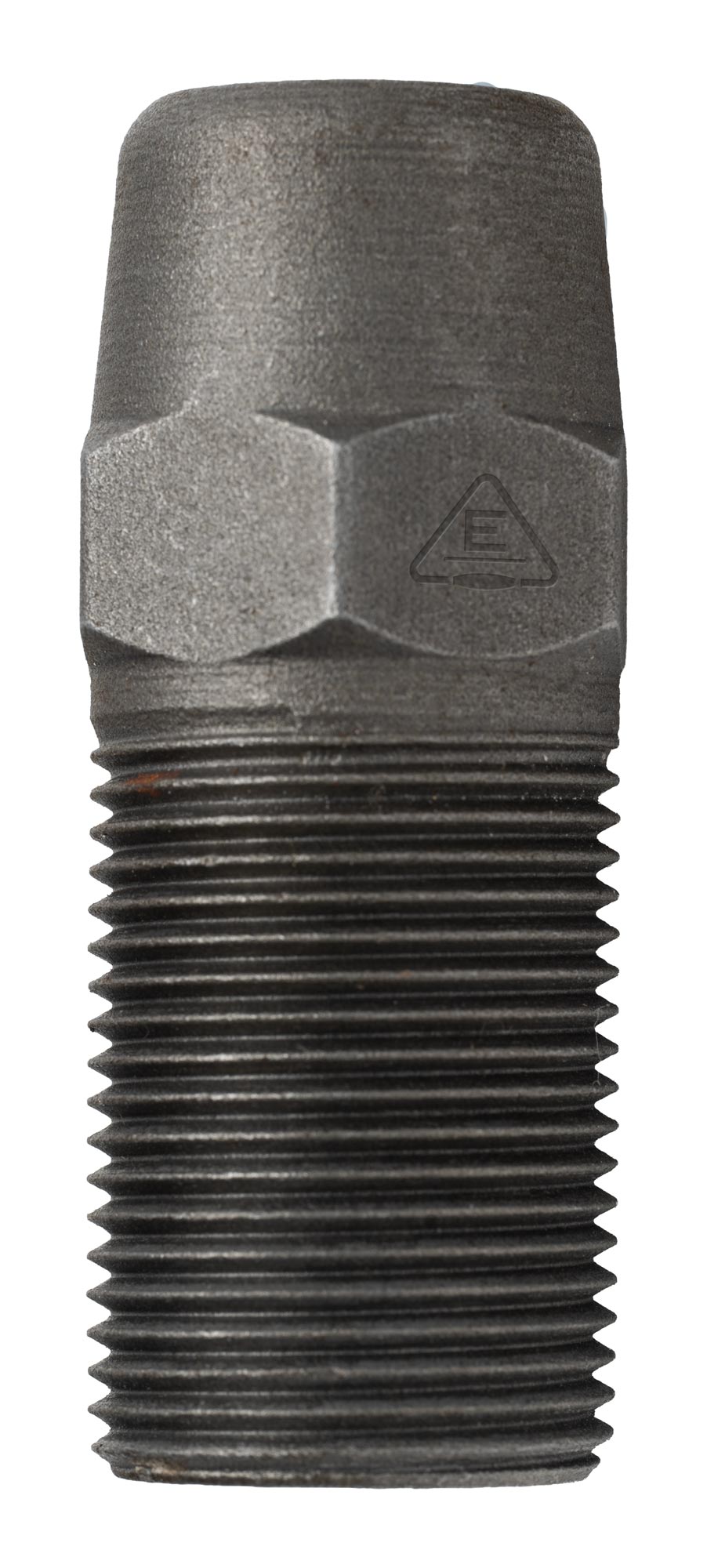

| ID-906-N | 1/16" | Self-Colored Steel | 3/8 | 1/2 | 7/8 | |

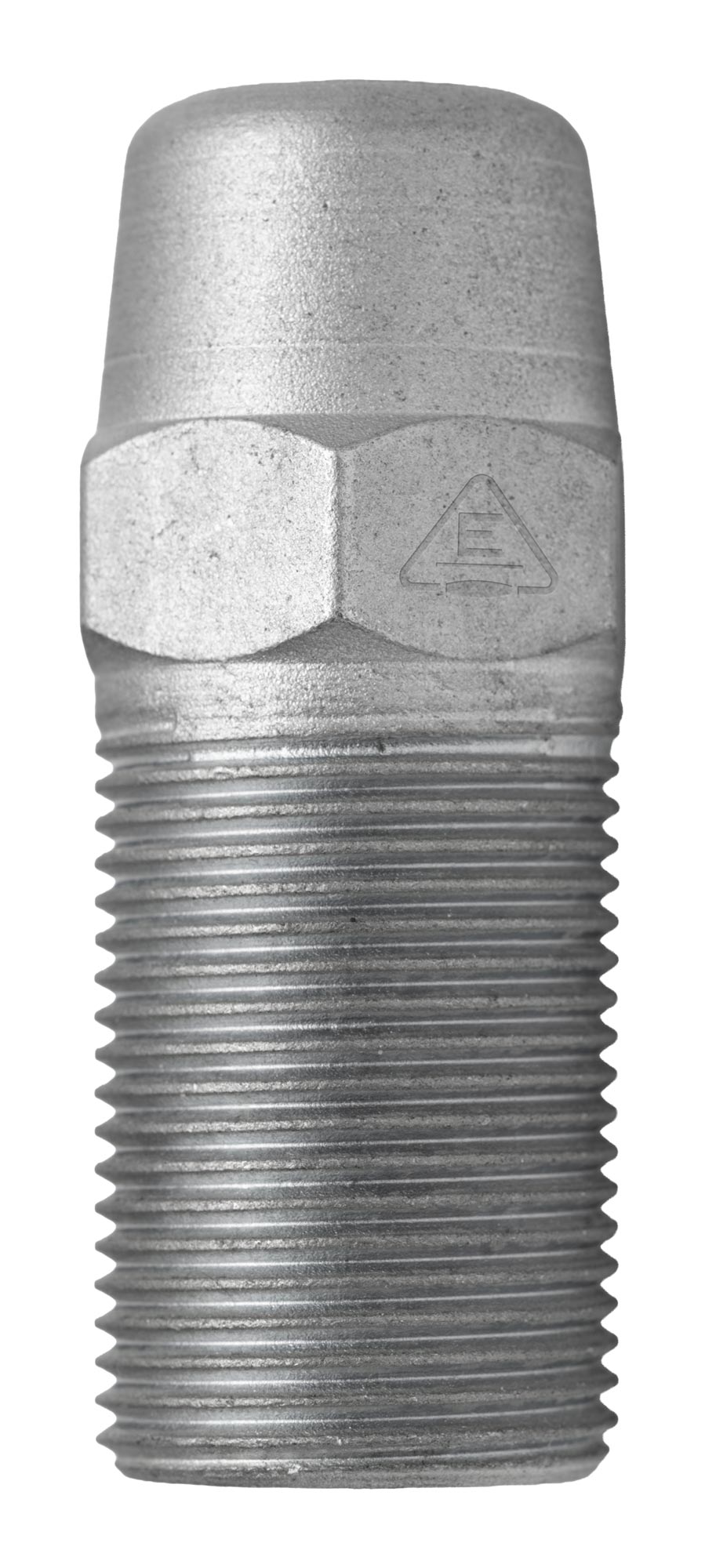

| ID-906-V | 1/16" | Zinc Plated Steel | 3/8 | 1/2 | 7/8 | |
| ID-909-N | 3/32" | Self-Colored Steel | 3/8 | 9/16 | 15/16 | |
| ID-909-V | 3/32" | Zinc Plated Steel | 3/8 | 9/16 | 15/16 | |
| ID-9112-N | 1-1/8" | Self-Colored Steel | 2-1/2 | 3-1/8 | 6-1/4 | |
| ID-9112-V | 1-1/8" | Zinc Plated Steel | 2-1/2 | 3-1/8 | 6-1/4 | |
| ID-912-N | 1/8" | Self-Colored Steel | 3/8 | 9/16 | 15/16 | |
| ID-912-V | 1/8" | Zinc Plated Steel | 3/8 | 9/16 | 15/16 | |
| ID-9125-N | 1-1/4" | Self-Colored Steel | 2-3/4 | 3-5/8 | 7-1/2 | |
| ID-9125-V | 1-1/4" | Zinc Plated Steel | 2-3/4 | 3-5/8 | 7-1/2 | |
| ID-9137-N | 1-3/8" | Self-Colored Steel | 3-1/2 Flats on 4" Round | 5-1/8 | 10 | |
| ID-9137-V | 1-3/8" | Zinc Plated Steel | 3-1/2 Flats on 4" Round | 5-1/8 | 10 | |
| ID-915-N | 5/32" | Self-Colored Steel | 1/2 | 21/32 | 1-7/32 | |
| ID-915-V | 5/32" | Zinc Plated Steel | 1/2 | 21/32 | 1-7/32 | |
| ID-9150-N | 1-1/2" | Self-Colored Steel | 3-1/2 Flats on 4" Round | 5-1/8 | 10 | |
| ID-9150-V | 1-1/2" | Zinc Plated Steel | 3-1/2 Flats on 4" Round | 5-1/8 | 10 | |
| ID-918-N | 3/16" | Self-Colored Steel | 1/2 | 21/32 | 1-7/32 | |
| ID-918-V | 3/16" | Zinc Plated Steel | 1/2 | 21/32 | 1-7/32 | |
| ID-921-N | 7/32" | Self-Colored Steel | 9/16 | 13/16 | 1-3/8 | |
| ID-921-V | 7/32" | Zinc Plated Steel | 9/16 | 13/16 | 1-3/8 | |
| ID-925-N | 1/4" | Self-Colored Steel | 9/16 | 13/16 | 1-3/8 | |
| ID-925-V | 1/4" | Zinc Plated Steel | 9/16 | 13/16 | 1-3/8 | |
| ID-928-N | 9/32" | Self-Colored Steel | 11/16 | 1 | 1-11/16 | |
| ID-928-V | 9/32" | Zinc Plated Steel | 11/16 | 1 | 1-11/16 | |
| ID-931-N | 5/16" | Self-Colored Steel | 3/4 | 1 | 1-11/16 | |
| ID-931-V | 5/16" | Zinc Plated Steel | 3/4 | 1 | 1-11/16 | |
| ID-937-N | 3/8" | Self-Colored Steel | 3/4 | 1-1/8 | 1-7/8 | |
| ID-937-V | 3/8" | Zinc Plated Steel | 3/4 | 1-1/8 | 1-7/8 | |
| ID-943-N | 7/16" | Self-Colored Steel | 7/8 | 1-5/16 | 2-1/4 | |
| ID-943-V | 7/16" | Zinc Plated Steel | 7/8 | 1-5/16 | 2-1/4 | |
| ID-950-N | 1/2" | Self-Colored Steel | 1 | 1-1/2 | 2-9/16 | |
| ID-950-V | 1/2" | Zinc Plated Steel | 1 | 1-1/2 | 2-9/16 | |
| ID-956-N | 9/16" | Self-Colored Steel | 1-1/4 | 1-5/8 | 3-1/8 | |
| ID-956-V | 9/16" | Zinc Plated Steel | 1-1/4 | 1-5/8 | 3-1/8 | |
| ID-962-N | 5/8" | Self-Colored Steel | 1-1/4 | 1-5/8 | 3-1/8 | |
| ID-962-V | 5/8" | Zinc Plated Steel | 1-1/4 | 1-5/8 | 3-1/8 | |
| ID-975-N | 3/4" | Self-Colored Steel | 1-1/2 | 1-7/8 | 3-5/8 | |
| ID-975-V | 3/4" | Zinc Plated Steel | 1-1/2 | 1-7/8 | 3-5/8 | |
| ID-987-N | 7/8" | Self-Colored Steel | 1-3/4 | 2-1/4 | 4-1/4 | |
| ID-987-V | 7/8" | Zinc Plated Steel | 1-3/4 | 2-1/4 | 4-1/4 | |
| ID-999-N | 1" | Self-Colored Steel | 2 | 2-3/4 | 5-1/8 | |
| ID-999-V | 1" | Zinc Plated Steel | 2 | 2-3/4 | 5-1/8 | |

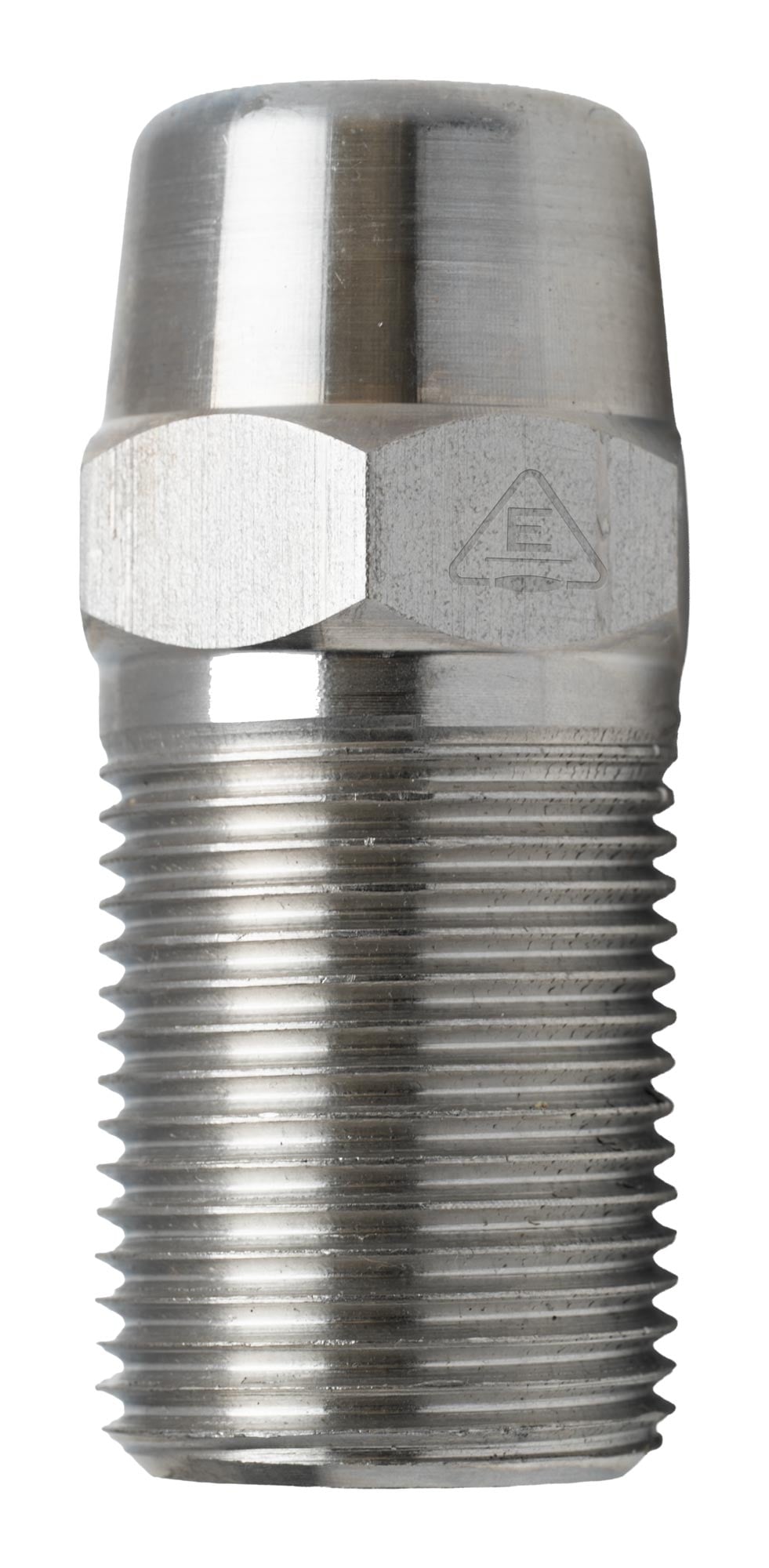

| IS-906 | 1/16" | Stainless Steel | 3/8 | 1/2 | 7/8 | |
| IS-909 | 3/32" | Stainless Steel | 3/8 | 9/16 | 15/16 | |
| IS-9112 | 1-1/8" | Stainless Steel | 2-1/2 | 3-1/8 | 6-1/4 | |
| IS-912 | 1/8" | Stainless Steel | 3/8 | 9/16 | 15/16 | |
| IS-9125 | 1-1/4" | Stainless Steel | 2-3/4 | 3-5/8 | 7-1/2 | |
| IS-915 | 5/32" | Stainless Steel | 1/2 | 21/32 | 1-7/32 | |
| IS-9150 | 1-1/2" | Stainless Steel | 3-1/2 Flats on 4" Round | 5-1/8 | 10 | |
| IS-918 | 3/16" | Stainless Steel | 1/2 | 21/32 | 1-7/32 | |
| IS-921 | 7/32" | Stainless Steel | 9/16 | 13/16 | 1-3/8 | |
| IS-928 | 9/32" | Stainless Steel | 11/16 | 1 | 1-11/16 | |
| IS-931 | 5/16" | Stainless Steel | 3/4 | 1 | 1-11/16 | |
| IS-937 | 3/8" | Stainless Steel | 3/4 | 1-1/8 | 1-7/8 | |
| IS-943 | 7/16" | Stainless Steel | 7/8 | 1-5/16 | 2-1/4 | |
| IS-950 | 1/2" | Stainless Steel | 1 | 1-1/2 | 2-9/16 | |
| IS-956 | 9/16" | Stainless Steel | 1-1/4 | 1-5/8 | 3-1/8 | |
| IS-962 | 5/8" | Stainless Steel | 1-1/4 | 1-5/8 | 3-1/8 | |
| IS-975 | 3/4" | Stainless Steel | 1-1/2 | 1-7/8 | 3-5/8 | |
| IS-987 | 7/8" | Stainless Steel | 1-3/4 | 2-1/4 | 4-1/4 | |
| IS-999 | 1" | Stainless Steel | 2 | 2-3/4 | 5-1/8 | |
| IS-9137 | 1-3/8" | Stainless Steel | 3-1/2 Flats on 4" Round | 5-1/8 | 10 | |
| IS-925 | 1/4" | Stainless Steel | 9/16 | 13/16 | 1-3/8 | |
