Swivels
For Wire and Synthetic Rope
Features & Benefits
Quick & Easy
- Available with exclusive Electroline swageless terminations that can be installed without special tools or complex processes.
- Other models include hook, clevis, and eye connectors.
Versatile
- From overhead to underwater, Electroline swivels are trusted components in many industries.
- Swivels can be custom-designed and manufactured for unique applications.
Strong
- Made from high-strength alloy or 316 Stainless Steel.
- Each swivel provides an Ultimate Strength that meets or exceeds the listed 5:1 or 3:1 Safe Working Load.
Reliable
- Every swivel is laser-coded with a traceable number and includes a one-year warranty.
- Manufactured in the USA and conforming to ISO 9001 standards.
Comparison Chart
| 3000 Series | 6000 Series | Oceanic & Specialty | ||
|---|---|---|---|---|
| SS Models | SSP Models | |||
| Features | ||||
| Features | Single-Roller Bearing, Permanently Lubricated | Angular-Contact Bearings, Permanently Lubricated | Angular-Contact Bearings, Sealed | Angular-Contact Bearings, Pressure Compensated |
| Rotation Resistance | ||||
| Rotation Resistance | High | Low | Low | Low |
| Corrosion Resistance | ||||
| Corrosion Resistance | Moderate | Moderate | High | High |
| Water Pressure Resistance | ||||
| Water Pressure Resistance | Moderate | Moderate | Moderate | High |
| Impact Resistant | ||||
| Impact Resistant | No | No | No | No |
| Cost | ||||
| Cost | $ | $$ | $$$ | $$$$$ |
| 3000 Series Models | 6000 Series Models | Oceanic & Specialty Models | ||
Swivel Product Lines

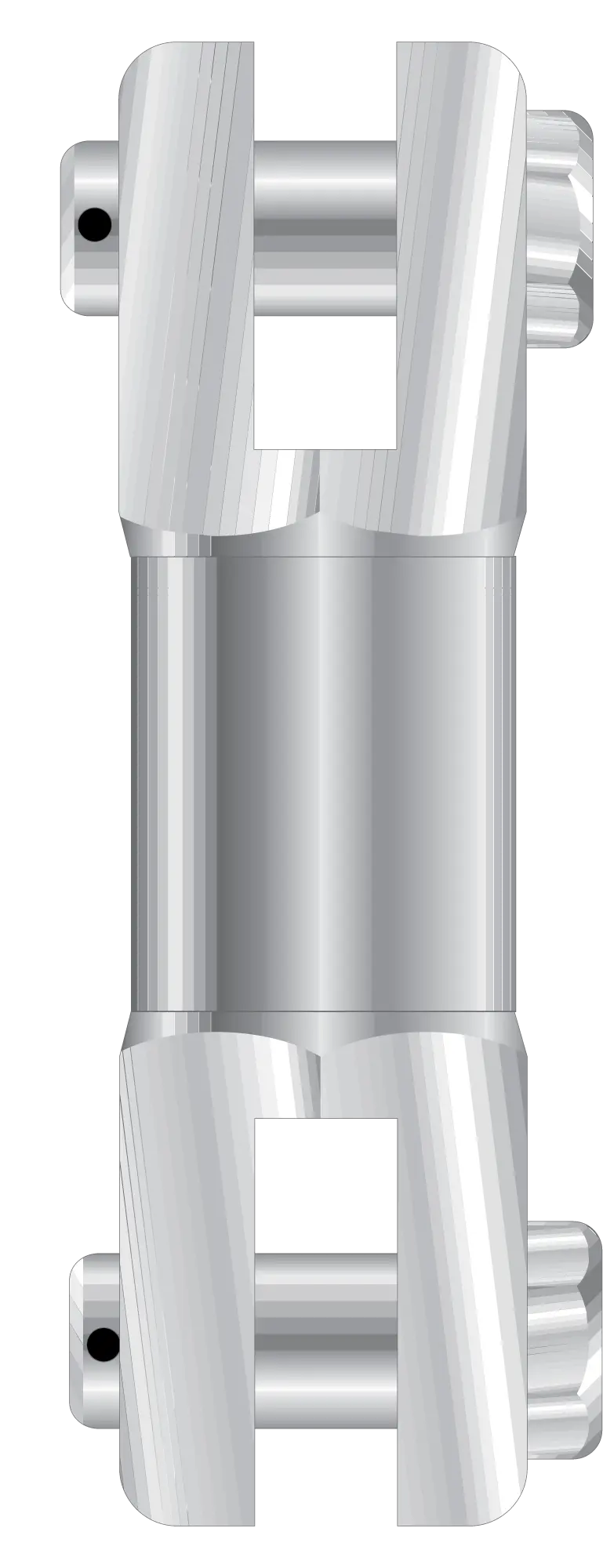

Model 37
3000 Series
- Single-roller bearing, permanently lubricated
- High rotation resistance
- Moderate corrosion resistant
- Moderate water resistance
- Economical
Model 62
6000 Series
- Angular-contact bearings, permanently lubricated
- Low rotation resistance
- Moderate corrosion resistant
- Moderate water resistance
Model SS-67
Sealed Stainless-Steel (SS)
- Angular-contact bearings, permanently lubricated
- Low rotation resistance
- High corrosion resistant
- Moderate water resistance
Model SSP-68
Sealed, Stainless Steel Pressure Compensated (SSP)
- Angular-contact bearings, permanently lubricated
- Low rotation resistance
- High corrosion resistant
- High water resistance
Related Components
Rope Thimble for Clevis Swivel
Designed to limit rope wear by preventing the rope from extending beyond the diameter of the swivel.
7200 Series 90-Degree Connector
Non-swiveling, dual clevis (fork/jaw) fittings.
Replacement Clevis Pin with Broached Hex (6000 Series Swivels)

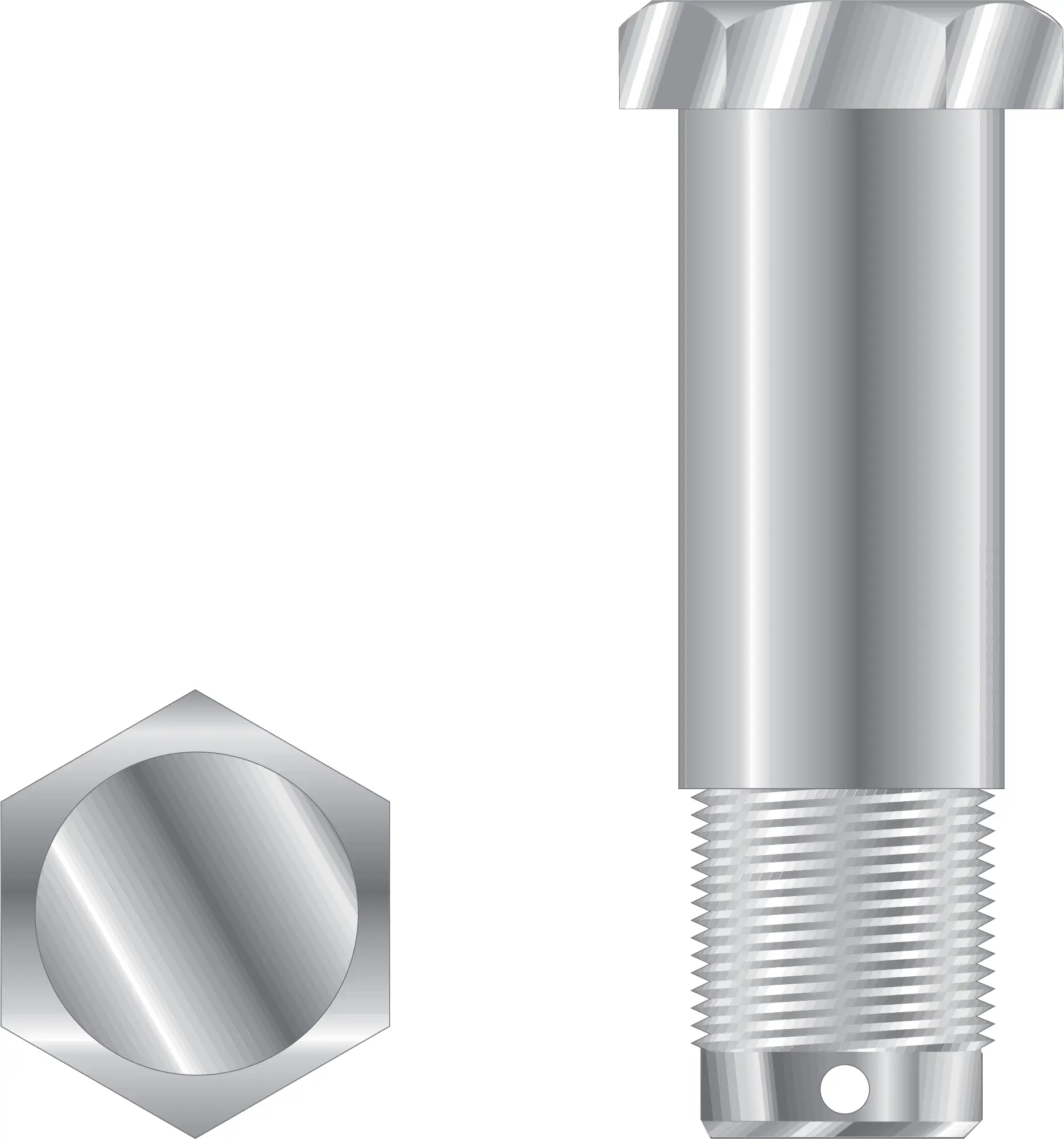

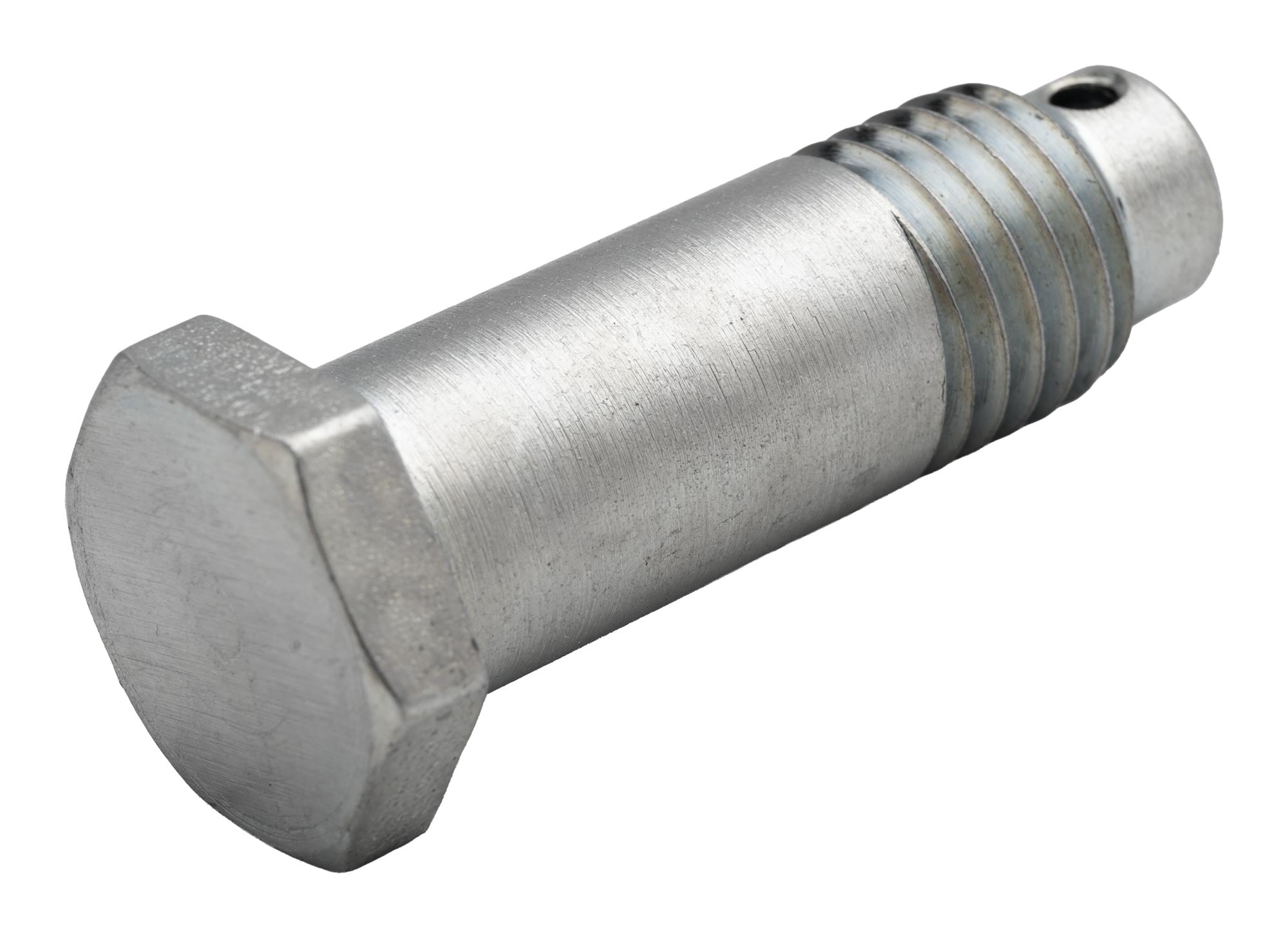

Replacement Clevis Pin with Hex Head (3000 Series)
