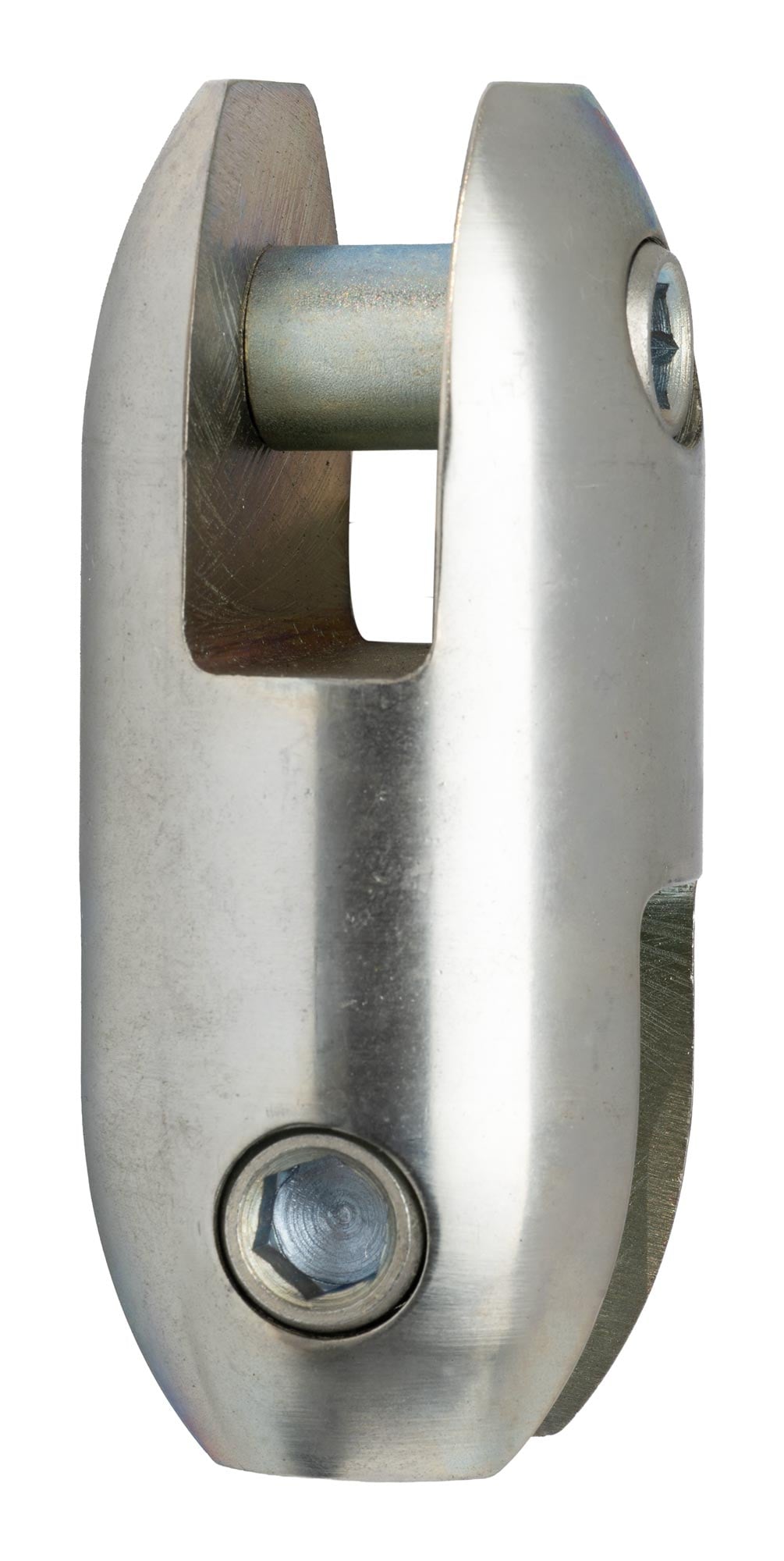

7200 Series 90-Degree Connector Clevis/Clevis (Non-Swiveling)

Non-swiveling rope connector with a clevis fitting on both ends.

Select from the 2 variables to find a matching product. Or, use the table below to sort all available options.

WLL 3:1 (Pounds)

WLL 5:1 (Pounds)

This table is updated based on the options selected above. You may also select the row matching the desired specifications.

Product Id	WLL 3:1 (Pounds)	WLL 5:1 (Pounds)	Dimensions

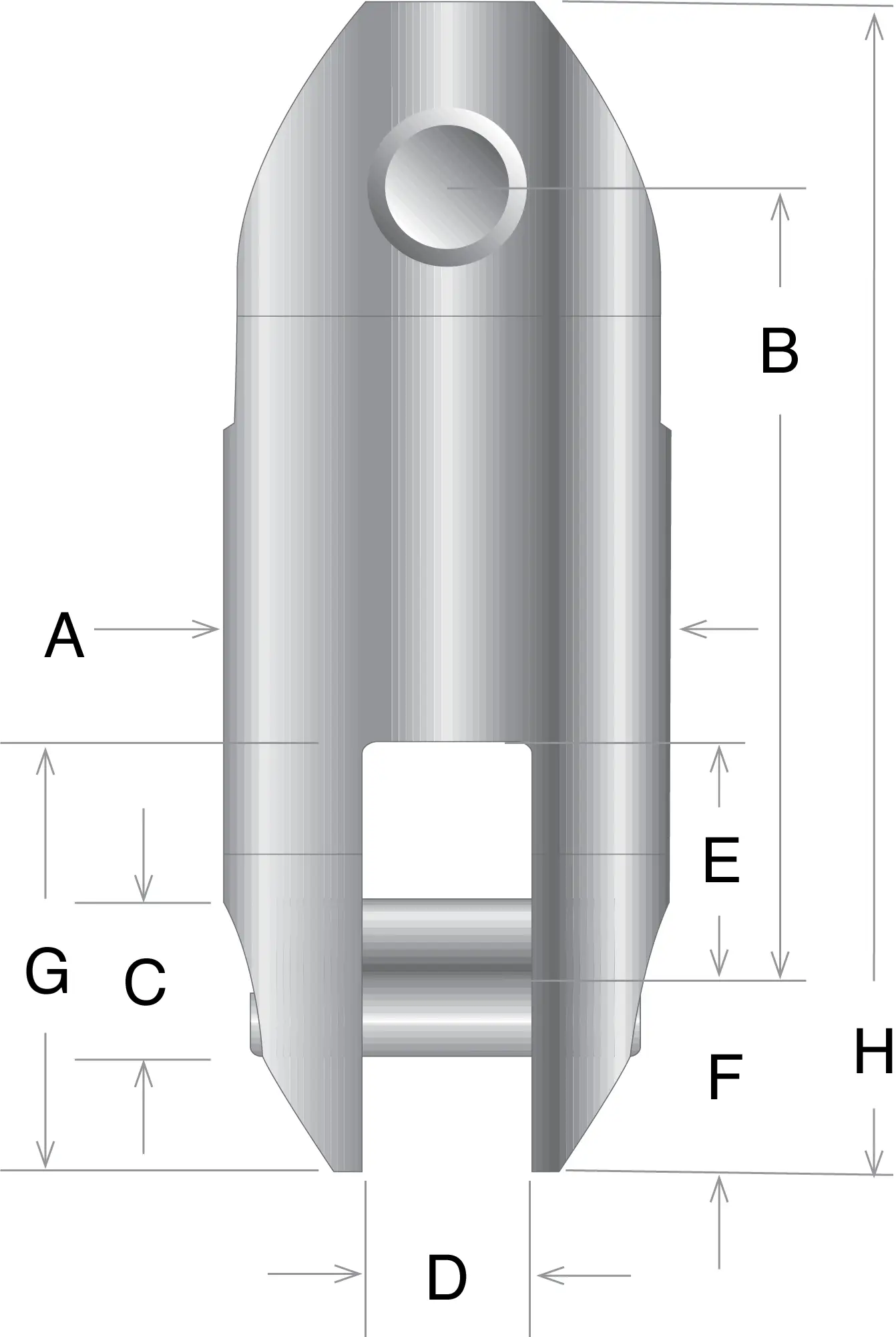

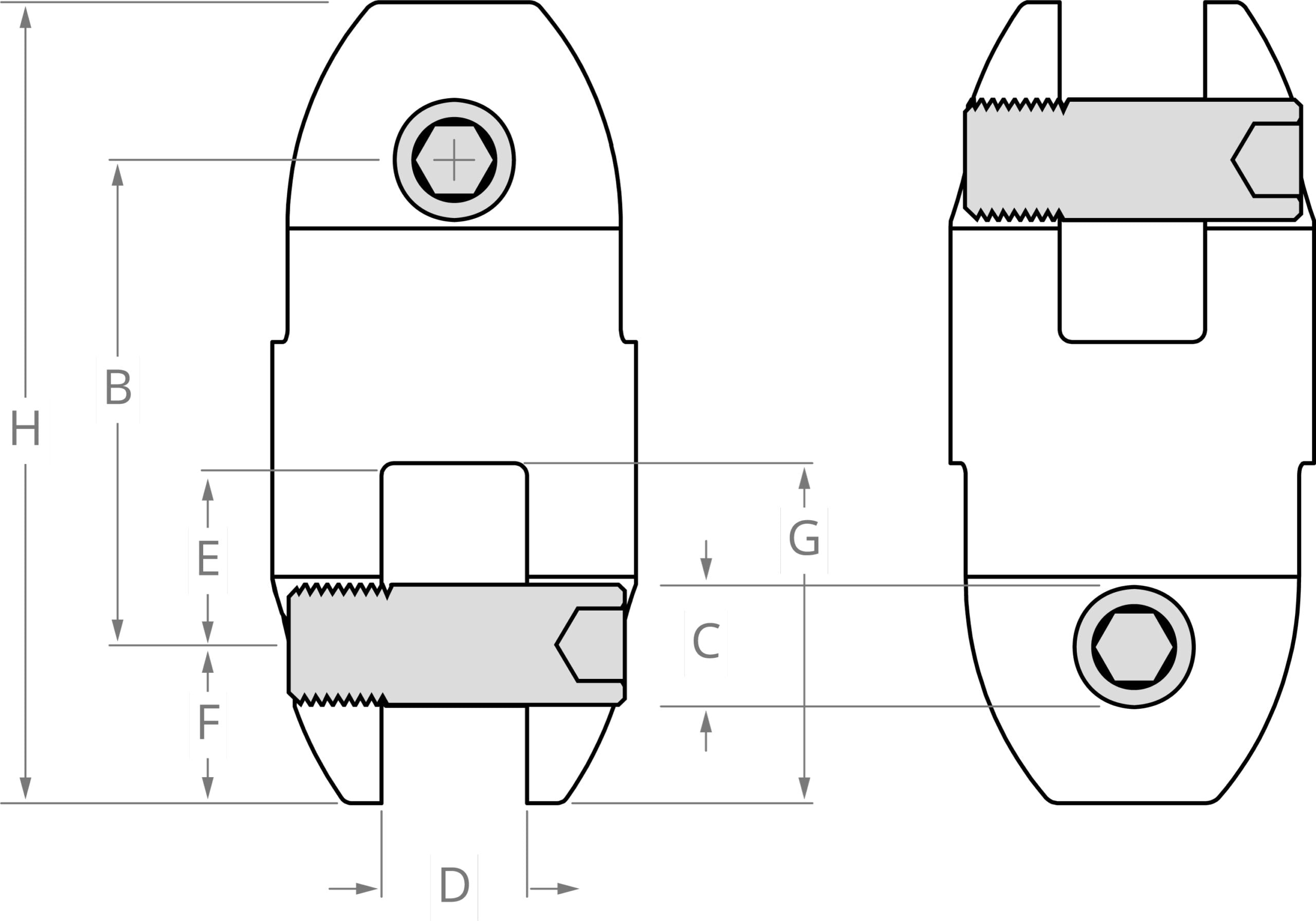

Product Id	WLL 3:1 (Pounds)	WLL 5:1 (Pounds)	A	B	C - Pin Dia.	D	E	F	G	H
7212	2,300	1,380	7/8	1-9/16	5/16	5/16	15/32	3/8	27/32	2-5/16
7225	5,000	3,000	1-1/4	2	3/8	19/32	11/16	7/16	1-1/8	2-7/8
7237	8,000	4,800	1-1/2	2-1/8	7/16	19/32	13/16	9/16	1-3/8	3-1/4
7250	11,500	6,900	1-7/8	2-1/2	5/8	3/4	15/16	13/16	1-3/4	4-1/8
7262	18,500	11,100	2-7/16	3-7/8	7/8	1	1-9/16	1-1/8	2-11/16	6-1/8
7275	31,500	18,900	2-1/2	4	7/8	1	1-9/16	1-1/8	2-11/16	6-1/4
