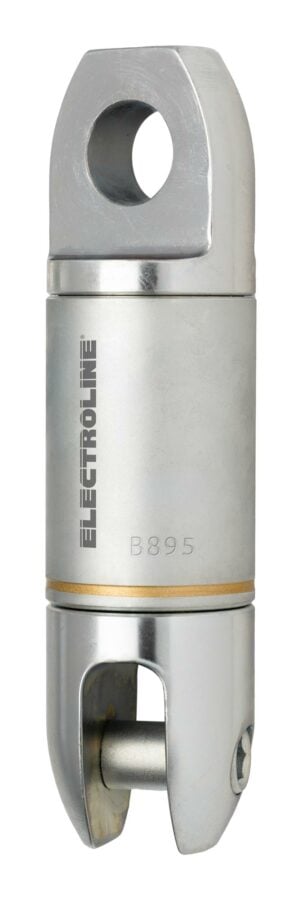

Eye & Clevis Angular Contact Bearing Swivel – Model 65
Electroline’s Model 65 industrial swivel features an eye-end fitting and a clevis (fork/jaw) fitting. Utilizing permanently lubricated angular contact bearings, the swivel provides higher-speed, low-torque rotation for longer rope lengths used in multiple applications. The tapered ends are designed to prevent snags on other equipment or cables.
- Ultimate strength exceeds the rated Working Load Limit (WLL).
- Built with high-strength alloy steel and zinc-plated for corrosion resistance.
- Note: Model 65 is a reversed design of the Model 68 Clevis/Eye Swivel.
Specifications
| Material | Zinc-Plated Alloy Steel |
|---|---|
| Termination Type | Clevis, Eye |
| Connector Type | Clevis, Eye |
| Water Pressure Resistance | Moderate |
Select from 2 key specifications to identify the matching product, or browse the complete list in the table below.

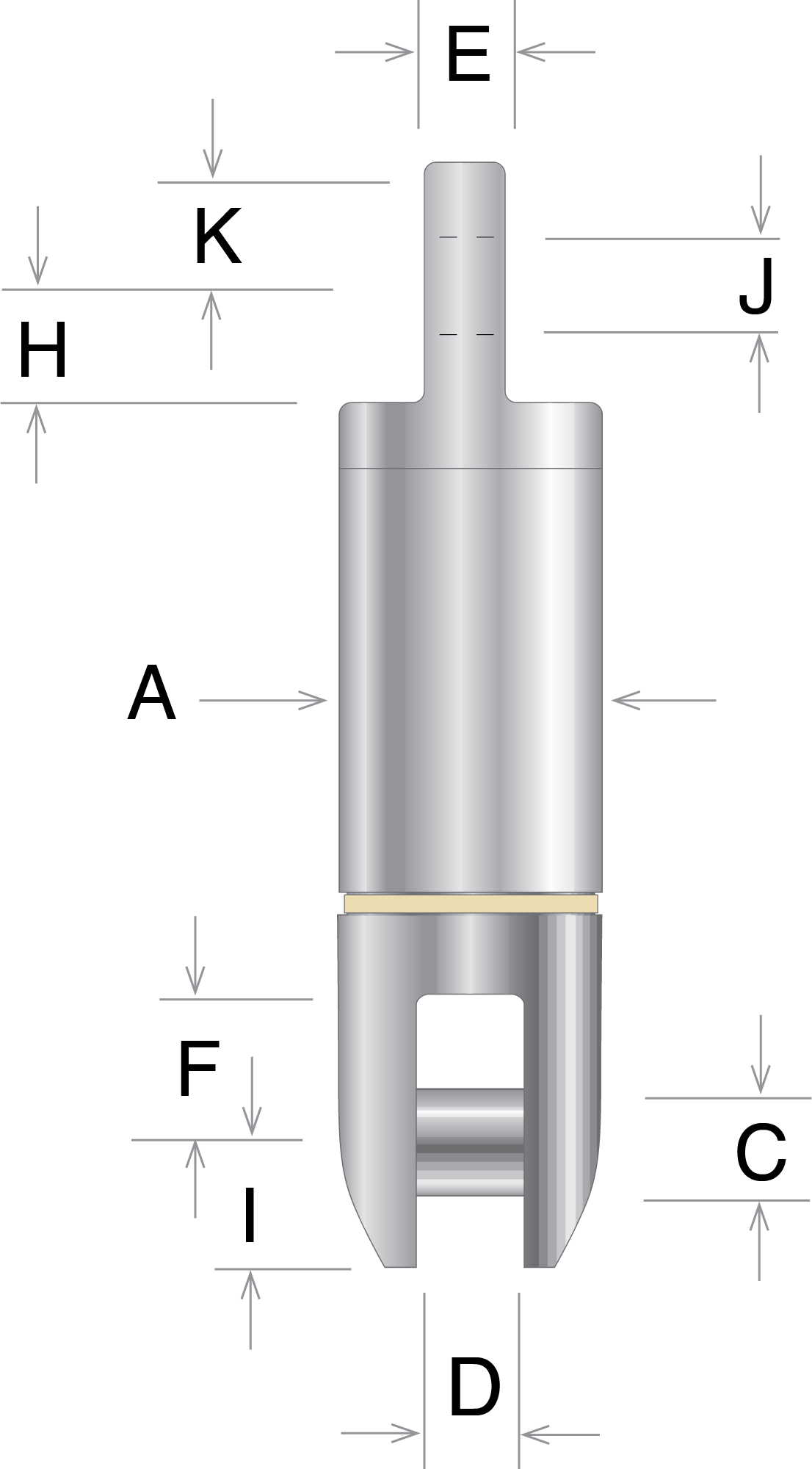

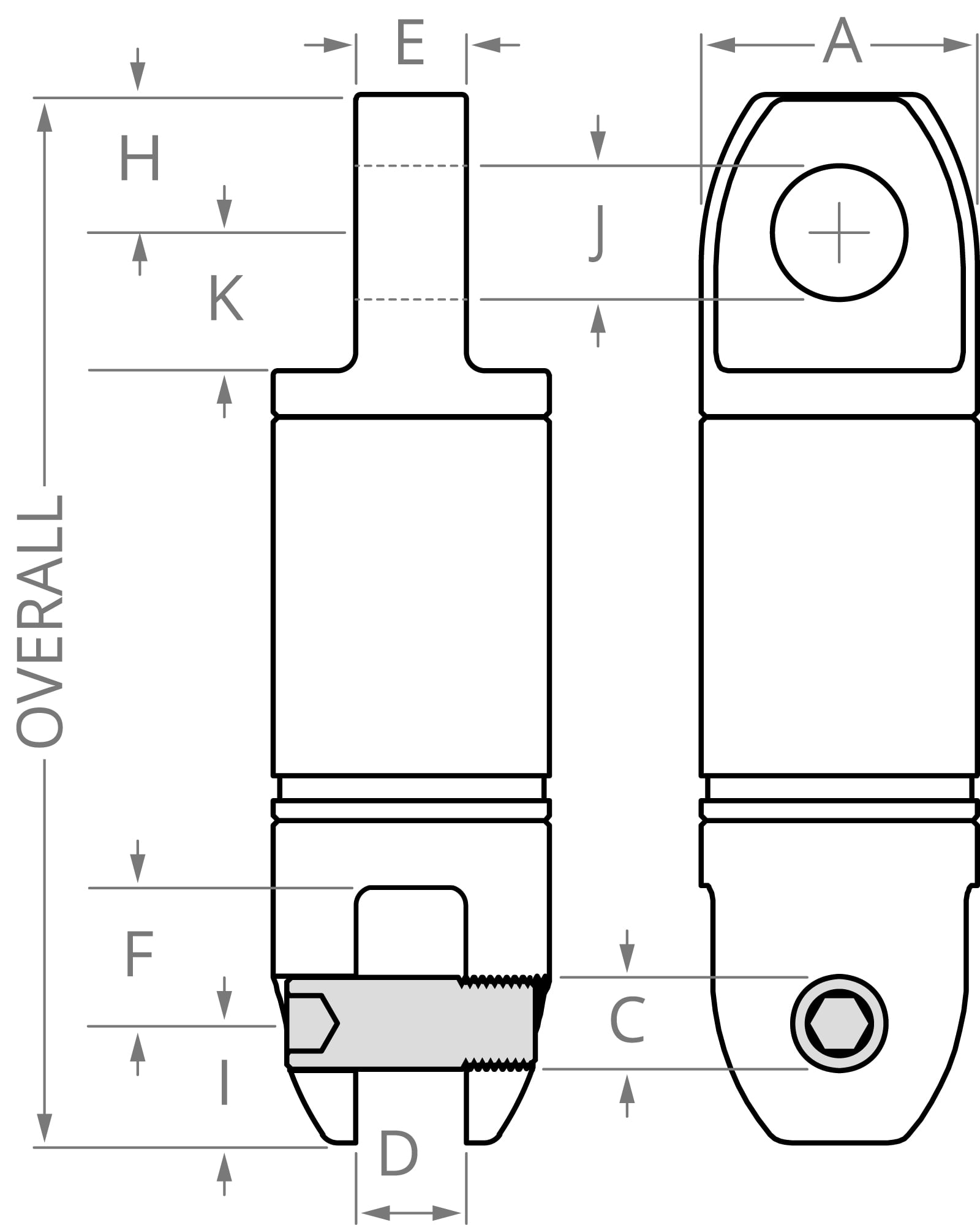

Sizes & Specifications
This table is updated based on the options selected above. Or, select a product directly from the table.
