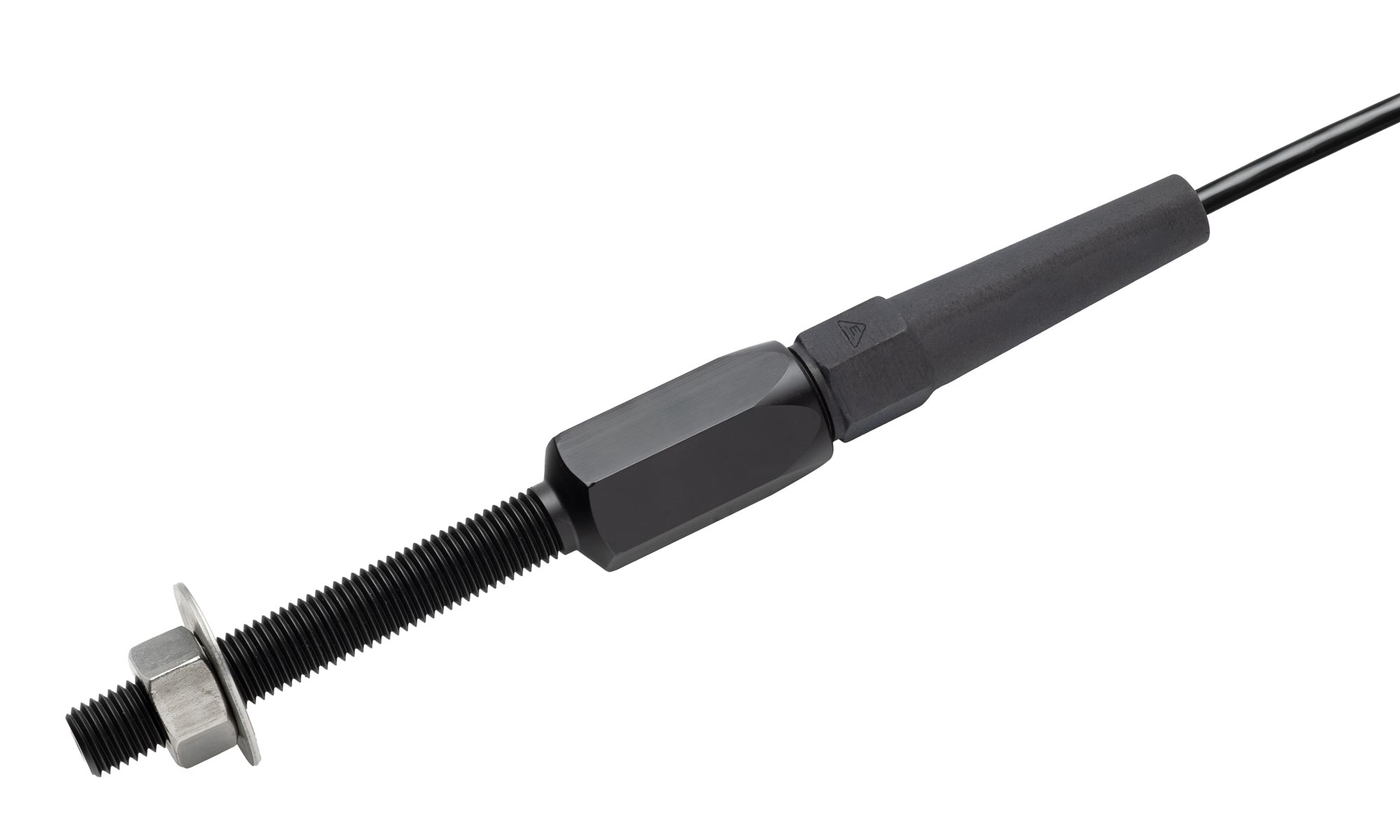

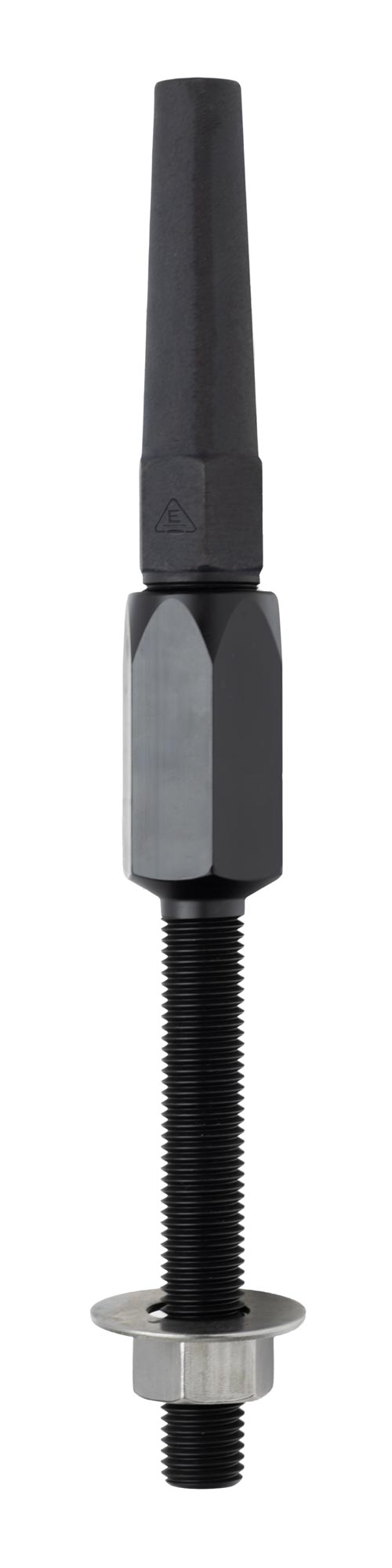

Stud Socket Fitting for Extruded Jacket Kevlar Rope
Description
Electroline synthetic rope fittings for Kevlar ropes with extruded jackets excel in meeting the need for a quick, reliable end termination. The fittings perform on polyurethane, Nylon II, and Hytrel jacket materials for ropes with the following construction: standard wire rope, contra-helical, parallel, and electro-mechanical.
This fitting features a clevis (fork/jaw) connection and a swageless rope termination, allowing it to be quickly installed in the field without special tools.
- Available for rope 3/16 to 3/4″ in size.
- Machined from aluminum to provide lightweight strength.
Specifications
Select from the available options to find the matching product. Or, use the table below to sort all available options.
| Jacket Material | Hytrel|Nylon II|Polyurethane |
|---|---|
| Jacket Type | Extruded |
| Material | Aluminum |
| Connector Type | Stud |
| Termination Type | Swageless |
Available Variations
Table updated based on the options selected above. Or, select the row matching the desired specifications.
