Stud Socket Fitting for Braided Jacket Kevlar Rope
Description
Electroline synthetic rope fittings for Kevlar rope with braided jackets excel in meeting the need for a quick, reliable end termination. These fittings use a swagless design with an internal taper pin that allows them to be installed in the field without special tools or complicated processes. They are selected for both the rope size and rated rope strength.

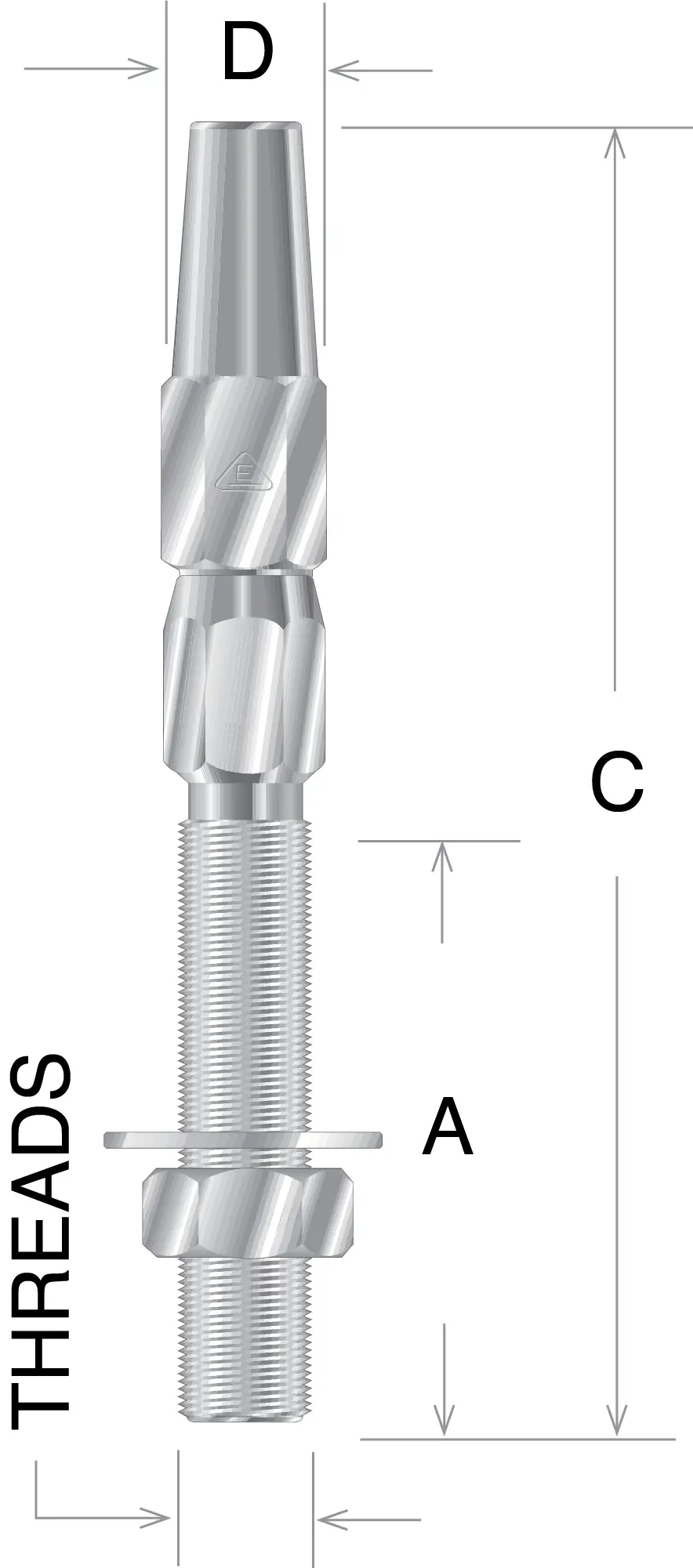

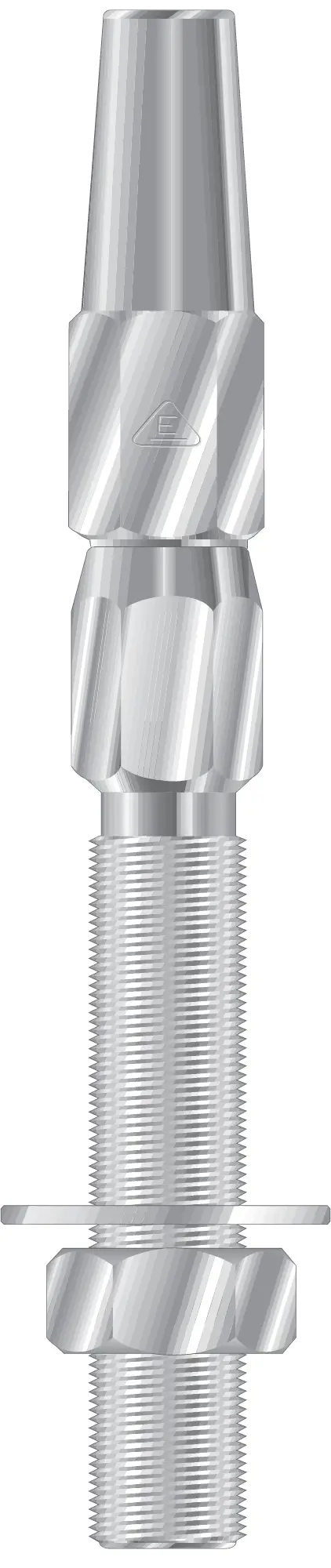

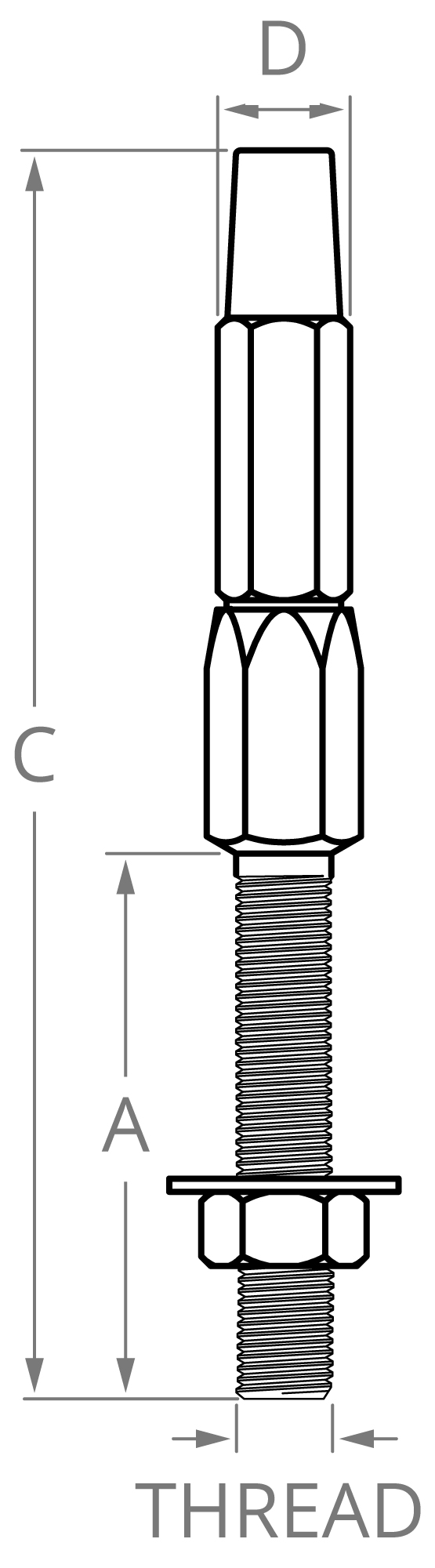

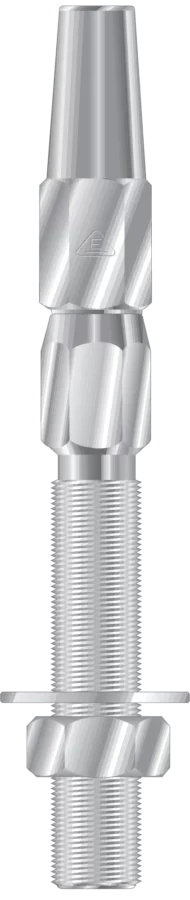

This fitting features a threaded stud that can be used to connect and tension the rope to a fixed point.
- Available for rope 3/16 to 3/4″ in size.
- Machined from aluminum to provide lightweight strength.
Specifications
Select from the 2 variables to find a matching product. Or, use the table below to sort all available options.
| Rope Material | Kevlar Rope |
|---|---|
| Jacket Type | Braided |
| Material | Aluminum |
| Connector Type | Stud |
| Termination Type | Swageless |
Available Variations
Table updated based on the options selected above. Or, select the row matching the desired specifications.
