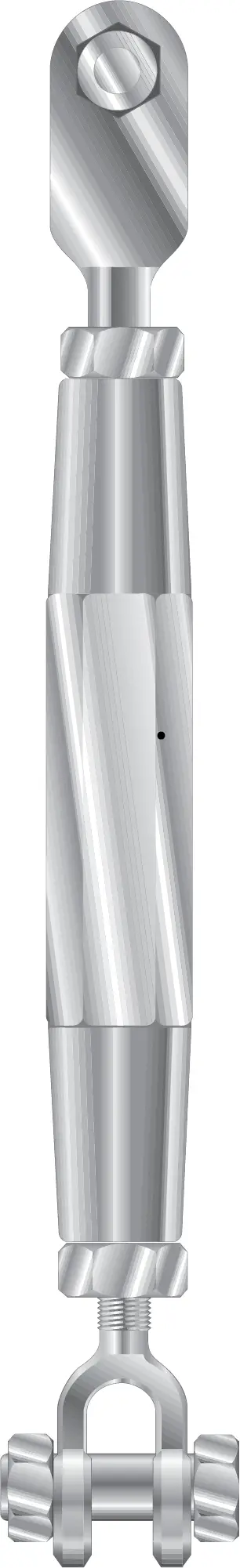

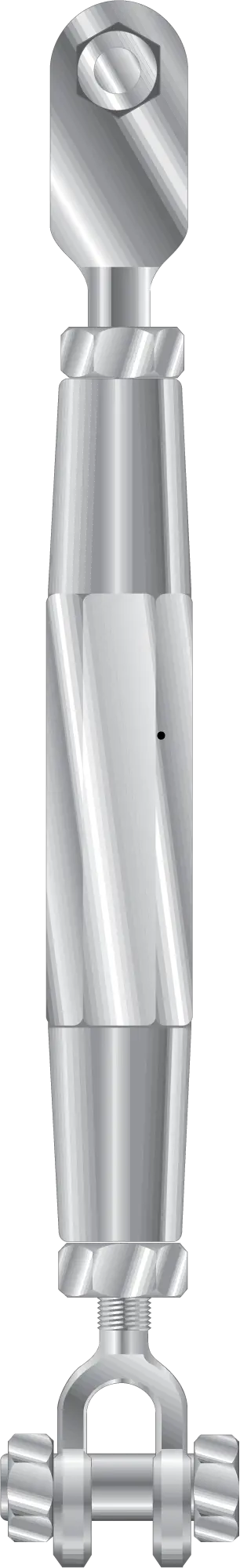

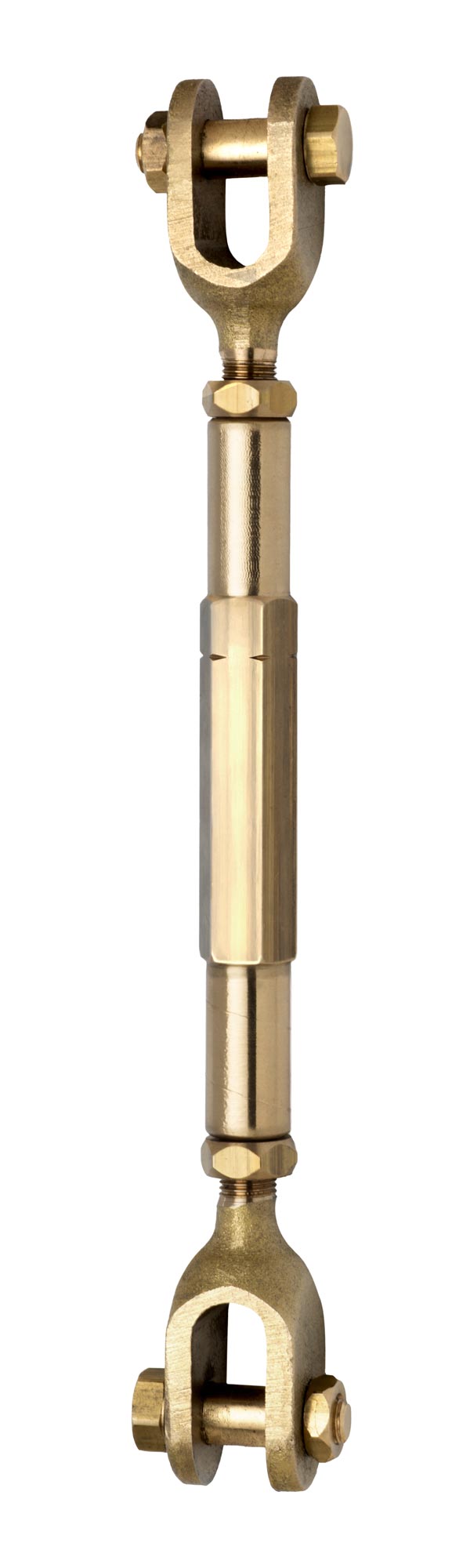

Closed Body Double Clevis Turnbuckle
Description
Electroline’s antenna fittings are designed to provide connections for guide wires supporting antennas aboard ships and in other maritime applications. This fitting is made from naval bronze to withstand both fresh and saltwater conditions. Bureau of Ships Number: MX-1176-U
Specifications
| Weight | 1.6 lbs |
|---|---|
| Material | Naval Bronze |
| Termination Type | Clevis |
| Connector Type | Clevis |
| Takeup | 4-9/16 |
| Rope Size | 5/16 |
| Item Number | YZ-431-R |
| List Price | $273.72 |

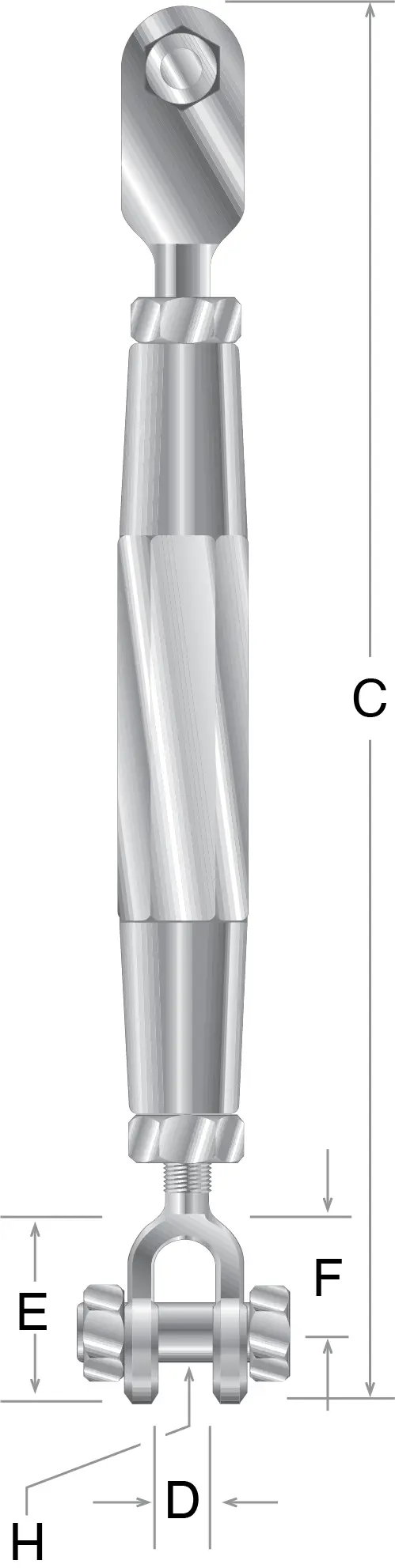

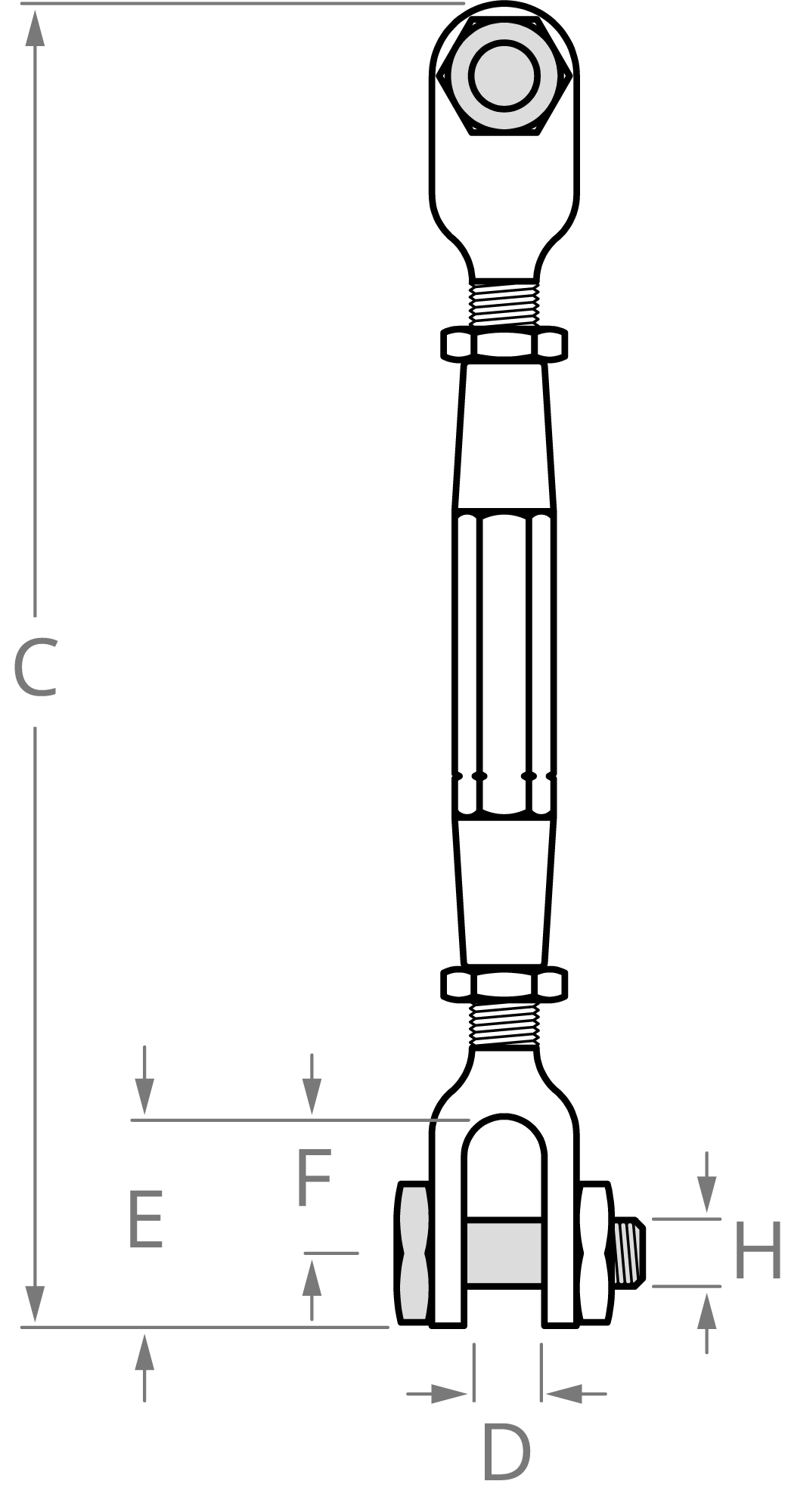

| Dim. C - Max | Dim. C - Min. | Dim. D | Dim. E | Dim. F | Dim. H |
|---|---|---|---|---|---|
| 16-1/16 | 11-1/2 | 5/8 | 1-5/8 | 1-1/16 | 1/2 |
Click "Request iInfo" for assistance with questions or finding an Electroline distributor.
