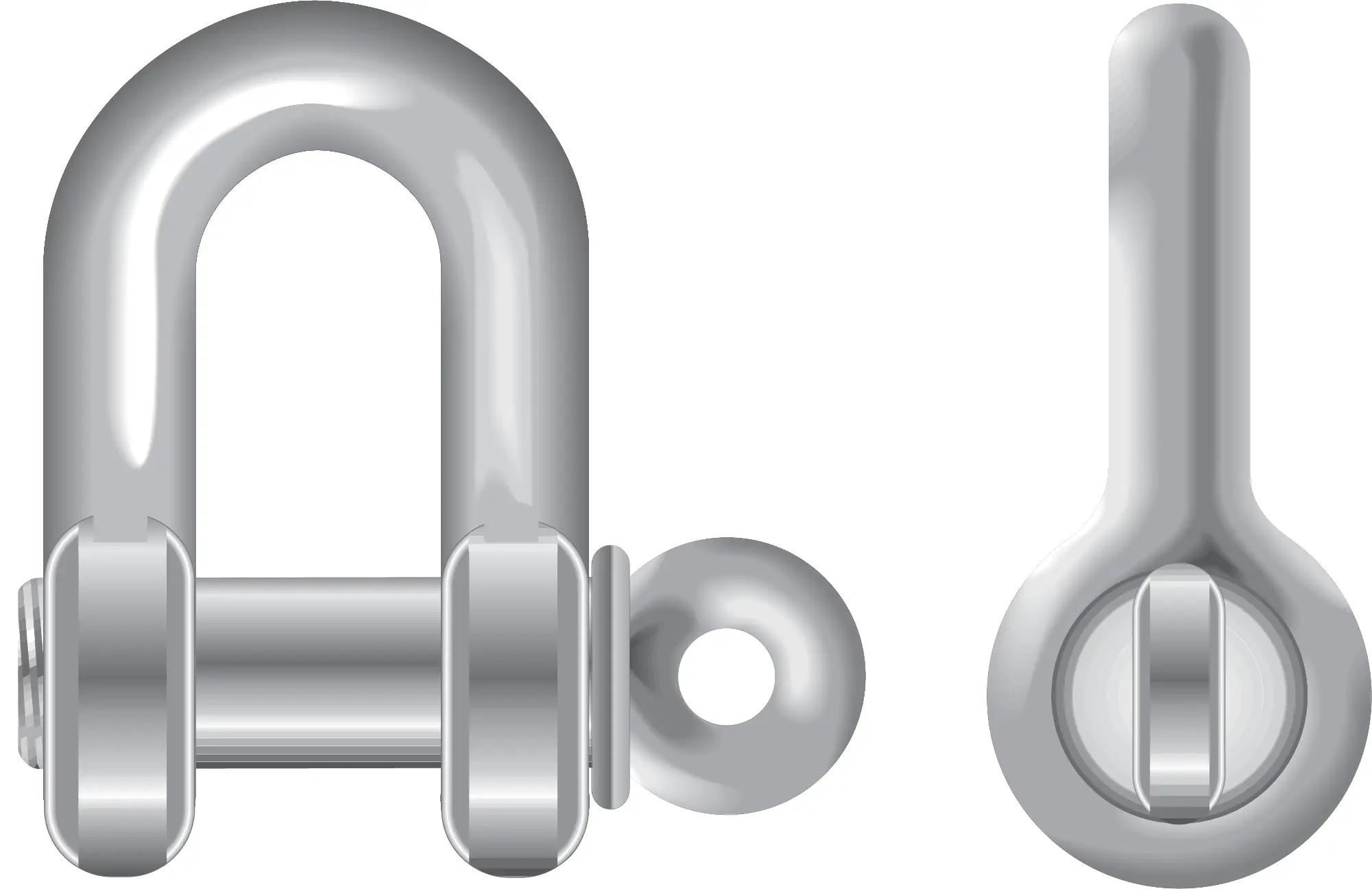

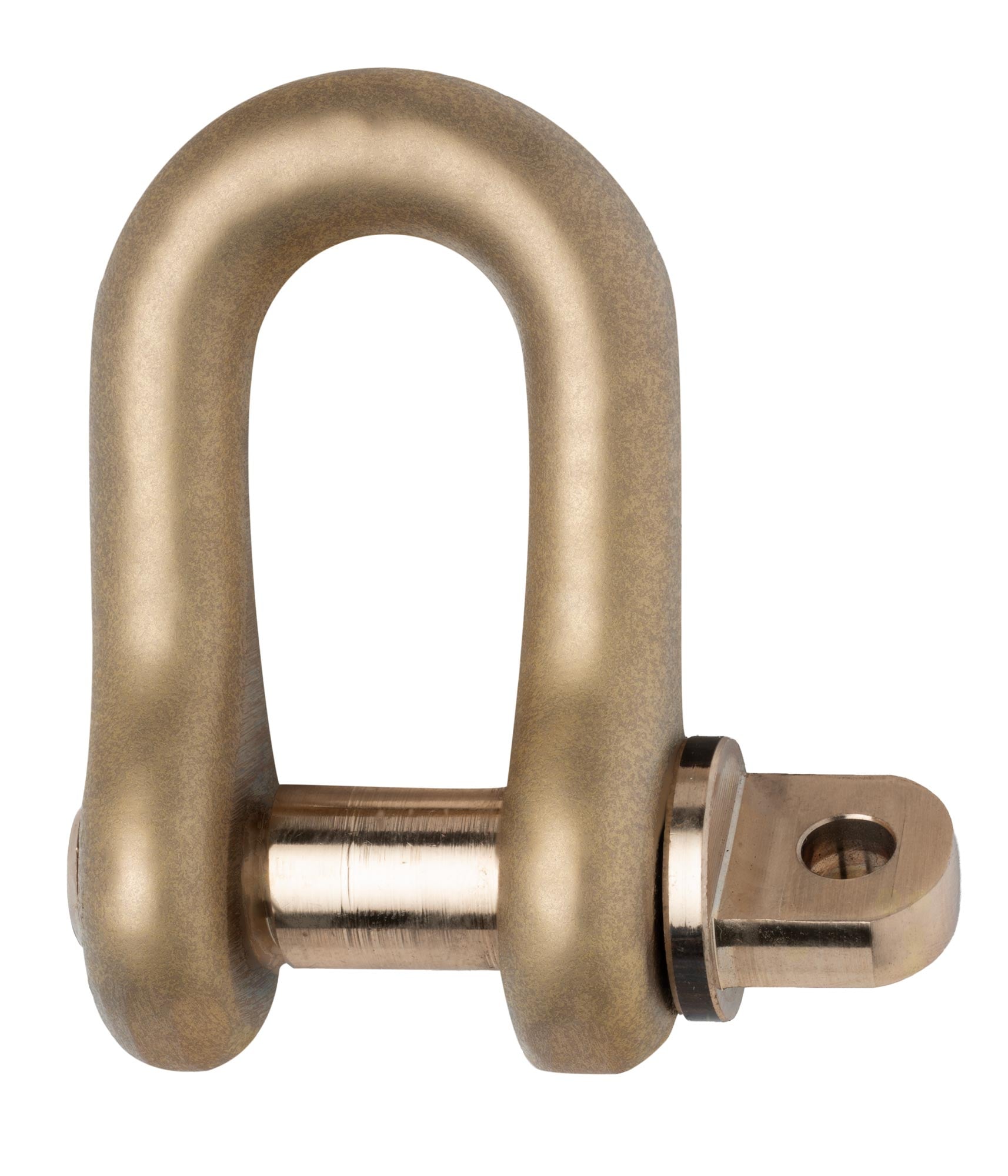

Shackle and Pin Assembly
Description
Electroline’s antenna fittings are made from naval bronze and designed to provide connections for guide wires supporting antennas aboard ships and in other maritime applications. This fitting is made from navel bronze to withstand both fresh water and saltwater conditions.
Specifications
| Material | Naval Bronze |
|---|---|
| Rope Size | 7/16 |
| Item Number | X-2843-R |
| List Price | $117.67 |

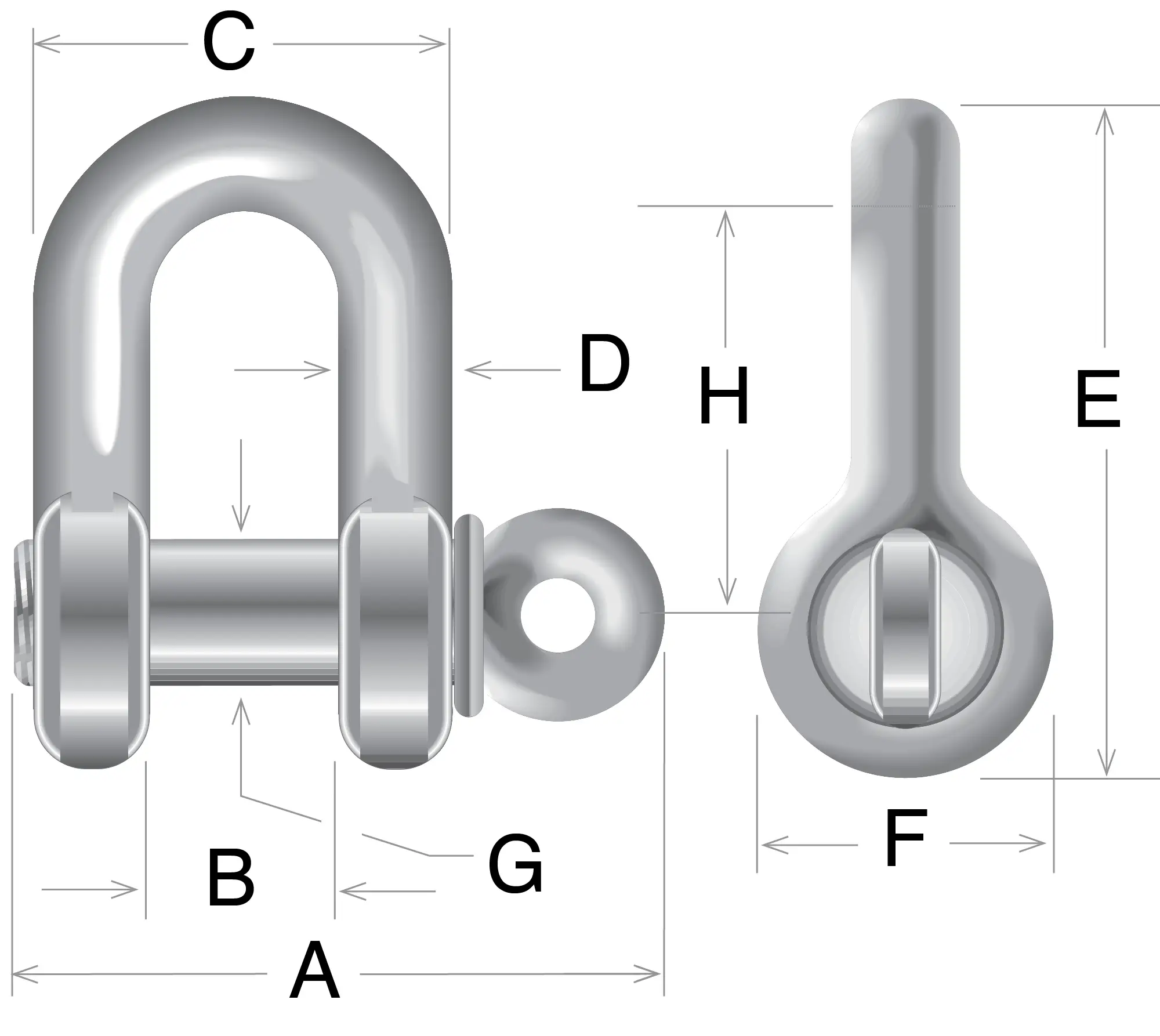

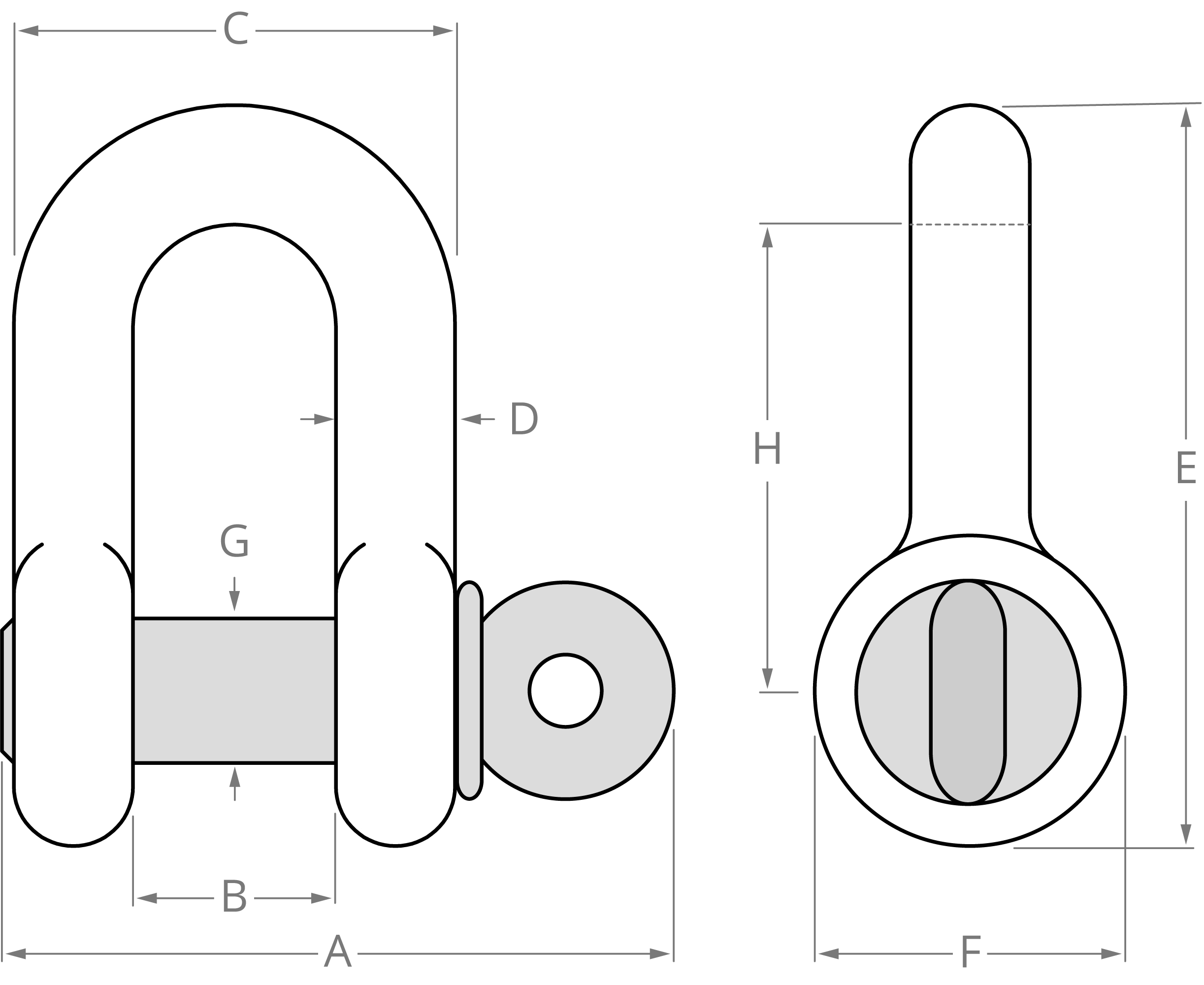

| Dim. A | Dim. B | Dim. C | Dim. D | Dim. E | Dim. F | Dim. G | Dim. H |
|---|---|---|---|---|---|---|---|
| 2-11/32 | 23/32 | 1-19/32 | 7/16 | 2-21/32 | 1-1/16 | 1/2 | 1-5/8 |
Add this item to a project list for assistance with questions or finding an Electroline distributor.
